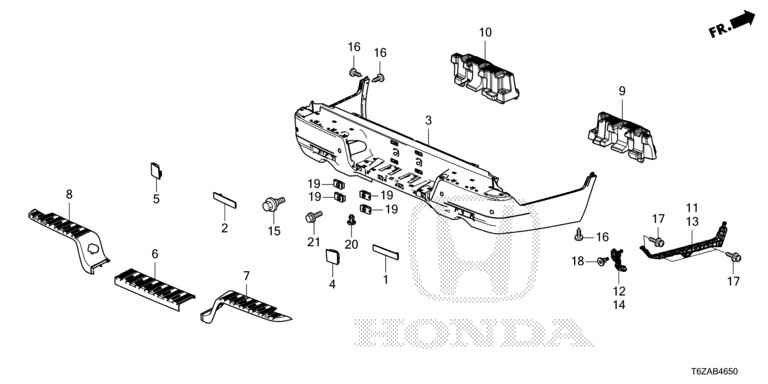

Rear Bumper
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 33505-S9V-A11 | REFLECTOR ASSY., R. RR. | 001 |
| 2 | 33555-S9V-A11 | REFLECTOR ASSY., L. RR. | 001 |
| 3 | 71501-T6Z-A60 | FACE, RR. BUMPER | 001 |
| 4 | 71502-T6Z-A00ZC | SKIRT, R. RR. UPPER *NH797M* (NH797M MODERN STEEL METALLIC) | 001 |
| 4 | 71502-T6Z-A00ZD | SKIRT, R. RR. UPPER *NH731P* (NH731P CRYSTAL BLACK PEARL) | 001 |
| 4 | 71502-T6Z-A00ZH | SKIRT, R. RR. UPPER *NH883P* (NH883P PLATINUM WHITE PEARL) | 001 |
| 4 | 71502-T6Z-A00ZK | SKIRT, R. RR. UPPER *R580M* (R580M RADIANT RED METALLIC II) | 001 |
| 4 | 71502-T6Z-A00ZL | SKIRT, R. RR. UPPER *NH877P* (NH877P SONIC GRAY PEARL) | 001 |
| 4 | 71502-T6Z-A00ZM | SKIRT, R. RR. UPPER *NH932M* (NH932M SOLAR REFLECTION SILVER METALLIC) | 001 |
| 4 | 71502-T6Z-A00ZP | SKIRT, R. RR. UPPER *G545M* (G545M ASH GREEN METALLIC) | 001 |
| 5 | 71507-T6Z-A00ZC | SKIRT, L. RR. UPPER *NH797M* (NH797M MODERN STEEL METALLIC) | 001 |
| 5 | 71507-T6Z-A00ZD | SKIRT, L. RR. UPPER *NH731P* (NH731P CRYSTAL BLACK PEARL) | 001 |
| 5 | 71507-T6Z-A00ZH | SKIRT, L. RR. UPPER *NH883P* (NH883P PLATINUM WHITE PEARL) | 001 |
| 5 | 71507-T6Z-A00ZK | SKIRT, L. RR. UPPER *R580M* (R580M RADIANT RED METALLIC II) | 001 |
| 5 | 71507-T6Z-A00ZL | SKIRT, L. RR. UPPER *NH877P* (NH877P SONIC GRAY PEARL) | 001 |
| 5 | 71507-T6Z-A00ZM | SKIRT, L. RR. UPPER *NH932M* (NH932M SOLAR REFLECTION SILVER METALLIC) | 001 |
| 5 | 71507-T6Z-A00ZP | SKIRT, L. RR. UPPER *G545M* (G545M ASH GREEN METALLIC) | 001 |
| 6 | 71510-T6Z-A00 | STEP, RR. BUMPER CENTER | 001 |
| 7 | 71511-T6Z-A00 | STEP, R. RR. BUMPER | 001 |
| 8 | 71516-T6Z-A00 | STEP, L. RR. BUMPER | 001 |
| 9 | 71570-T6Z-A00 | SUPPORT, R. RR. STEP | 001 |
| 10 | 71575-T6Z-A00 | SUPPORT, L. RR. STEP | 001 |
| 11 | 71593-T6Z-A01 | SPACER, R. RR. BUMPER SIDE | 001 |
| 12 | 71594-T6Z-A00 | SPACER, R. RR. BUMPER COMBINATION | 001 |
| 13 | 71598-T6Z-A01 | SPACER, L. RR. BUMPER SIDE | 001 |
| 14 | 71599-T6Z-A00 | SPACER, L. RR. BUMPER COMBINATION | 001 |
| 15 | 90101-SE0-010 | BOLT ASSY. B, BUMPER | 002 |
| 16 | 90103-TA0-000 | SCREW, TAPPING, 5X20 | 010 |
| 17 | 90114-SZ3-000 | SCREW-WASHER, 5X20 | 006 |
| 18 | 90149-SA0-003 | BOLT, BUMPER | 004 |
| 19 | 90675-SA5-003 | NUT, CLIP, 6MM | 004 |
| 20 | 91505-TM8-003 | CLIP, BUMPER (NIFCO) | 002 |
| 21 | 95701-06016-08 | BOLT, FLANGE, 6X16 | 004 |
