Honda Vezel RV5 Engine Parts

Ref No Part Number Part Description 1 16400-6Y0-003 Throttle body, electronic control 2 95701-06035-08 Bolt, Flange (6X35)

Ref No Part Number Part Description 1 12100-5P6-J03 Head ASSY., Cylinder 2 12204-PJ7-305 Guide, inlet valve Oversize 3 12204-RBD-305 Guide, Inlet valve Oversize 4 12266-6Y0-000 Cover COMP., Sensor 5 12280-5R0-003…

Ref No Part Number Part Description 1 12210-PZ1-003 Seal A, Valve Stem Arai 1 12210-PZ1-004 Seal A, Valve Stem NOK 2 12211-PZ1-003 Seal B, Valve Stem Arai 2 12211-PZ1-004 Seal…

Ref No Part Number Part Description 1 14110-62W-000 Camshaft COMP., inlet 2 14120-5WJ-A00 Camshaft COMP., exhaust 3 14211-5R0-000 Sprocket, cam end driven 4 14310-62W-T01 Gear ASSY., VTC 5 14401-5K9-004 Chain…

Ref No Part Number Part Description 1 11410-62W-000 Case ASSY., chain 2 11412-6Y0-000 Cover, chain case 3 11413-5R0-003 O-Ring, Chain Case 6 15200-5R0-000 Pipe COMP., Oil level 7 15810-62W-T01 Valve…

Ref No Part Number Part Description 1 06147-5P6-J01 Valve Set, Exhaust 2 14620-5R0-000 Arm ASSY., Intake rocker 3 14625-5R0-000 Arm ASSY., exhaust rocker 4 14711-5R0-000 Valve, Inlet 4 14711-62F-T00 Valve,…

Ref No Part Number Part Description 1 15100-5R0-003 Pump ASSY., Oil 2 15220-5R0-005 Strainer COMP., Oil 3 15221-5R0-005 Gasket, Oil Strainer 4 15231-PFB-003 Valve, Relief 5 15232-R9G-000 Spring, Relief Valve…

Ref No Part Number Part Description 1 11000-6HN-800 Block Assy., Cylinder LEC 2 11104-5R0-000 Spacer Assembly, Cooling Control 3 11105-6Y0-000 Cover, Block 4 11106-PWA-300 Bolt, Sealing 24MM 5 11107-PWA-300 Washer,…

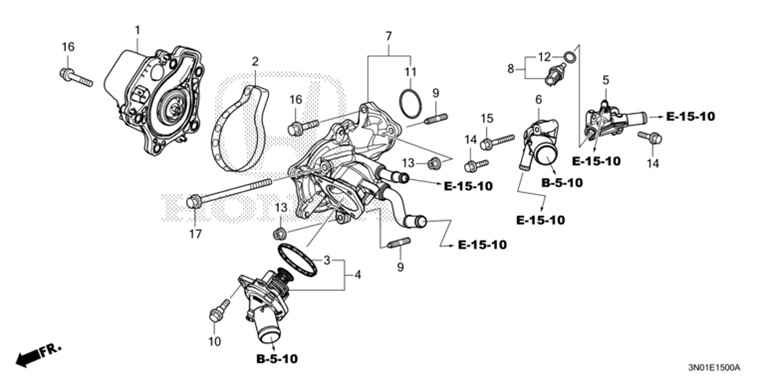

Ref No Part Number Part Description 1 19200-5K0-A01 Pump COMP., Electric Water 2 19222-5K0-A01 Packing, Water Pump 3 19305-PNA-003 Seal, Thermostat Cover Nippon 4 19310-5K9-004 Cover ASSY., Thermostat 5 19315-6Y0-000…
