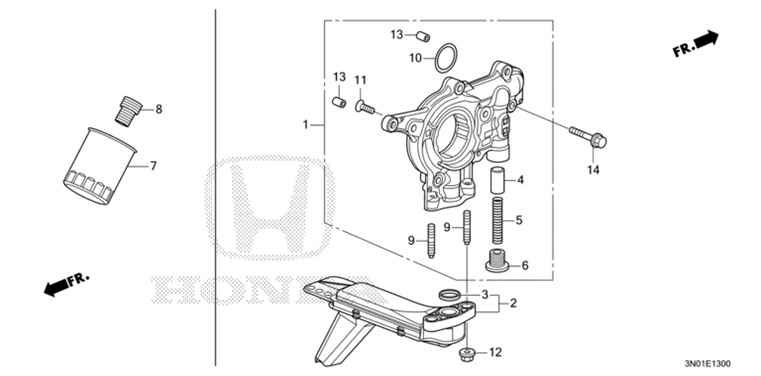

Oil Pump
| Ref No | Part Number | Part Description |
| 1 | 15100-5R0-003 | Pump ASSY., Oil |
| 2 | 15220-5R0-005 | Strainer COMP., Oil |
| 3 | 15221-5R0-005 | Gasket, Oil Strainer |
| 4 | 15231-PFB-003 | Valve, Relief |
| 5 | 15232-R9G-000 | Spring, Relief Valve |
| 6 | 15233-R9G-000 | Bolt, sealing 14mm |
| 7 | H1540-RTA-003 | Cartridge, Oil Filter HAMP |
| 7 | H1540-RTA-505 | Cartridge, Oil Filter HAMP |
| 7 | 15400-RTA-003 | Cartridge, Oil Filter |
| 8 | 90015-PH1-013 | Holder, Oil Filter |
| 9 | 90042-5R0-000 | Bolt, Stud 6X34 |
| 10 | 91326-PF4-004 | O-ring 24.4X2.4 NOK |
| 11 | 93600-06016-0A | Screw, Flat (6X16) |
| 12 | 94050-06080 | Nut, Flange (6Mm) |
| 13 | 94301-08140 | Pin, Dowel (8X14) |
| 14 | 95701-06030-08 | Bolt, Flange (6X30) |
