Honda Civic FE Engine Parts

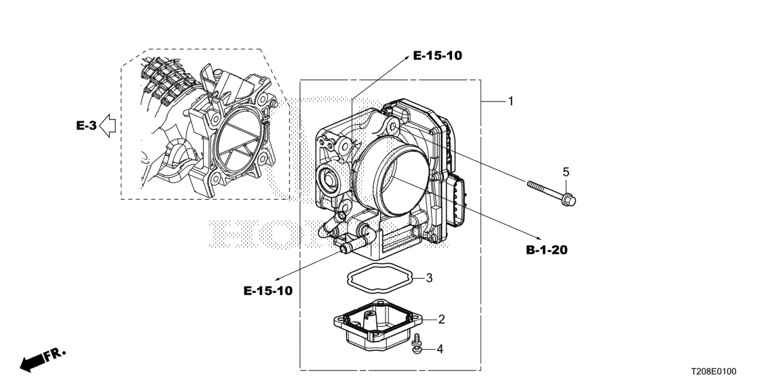

Ref No. Parts No. Parts Name 1 16400-59B-003 ELECTRONIC THROTTLE BODY (GMG9A) 2 16430-RTA-J01 Throttle Body Lower Case 3 16431-RTA-J01 GASKET, LOWER CASE 4 93892-04012-08 SCREW-WASHER, 4X12 5 95701-06035-08 BOLT,…

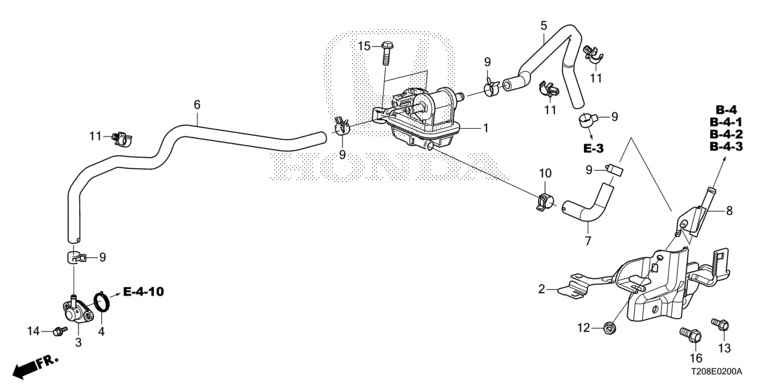

Ref No. Parts No. Parts Name 1 36162-5AA-A01 PURGE CONTROL SOLENOID VALVE 2 36163-64A-A00 PURGE CONTROL SOLENOID GUARD 3 36164-64A-003 JOINT COMP., PURGE (P1) 4 36165-64A-A01 PACKING, JET PUMP 5…

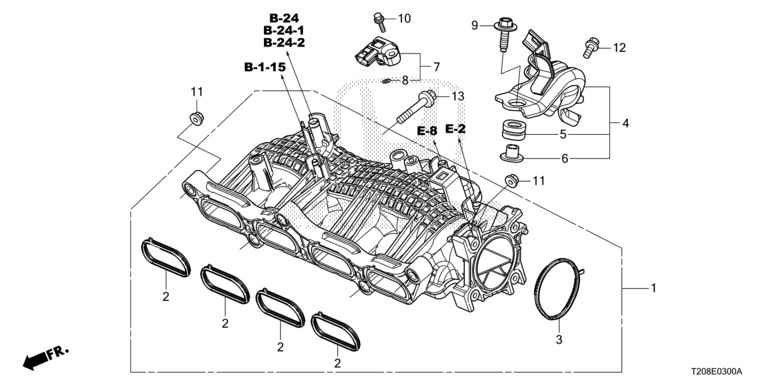

Ref No Parts No. Parts Name 1 17100-64A-004 INTAKE MANIFOLD 2 17105-5AA-004 INTAKE MANIFOLD PACKING 3 17107-5AA-004 THROTTLE BODY PACKING 4 17132-59B-000 INTAKE MANIFOLD STAY 5 17213-59B-000 INTAKE MANIFOLD MOUNTING…

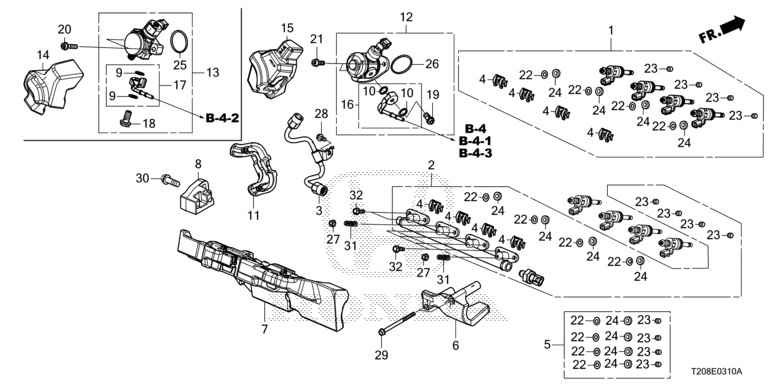

Ref No Parts No. Parts Name 1 16010-5PA-305 FUEL INJECTOR 2 16011-5AA-305 FUEL PIPE 3 16012-59B-315 PIPE SET, FUEL JOINT 4 16451-5R1-J01 CLIP, INJECTOR 5 16453-5R1-J00 INJECTOR SEAL SET 6…

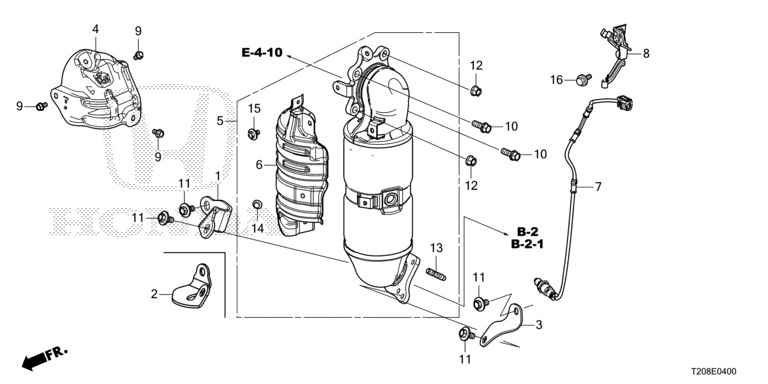

Ref No. Parts No. Parts Name 1 11941-5AA-A00 Converter Bracket (R.) 3 11942-5AA-A00 Converter Bracket (L.) 4 18120-6A0-P00 Exhaust Cover 5 18150-64A-K10 Three Way Catalytic Converter (TWC) 6 18181-59B-000 Catalytic…

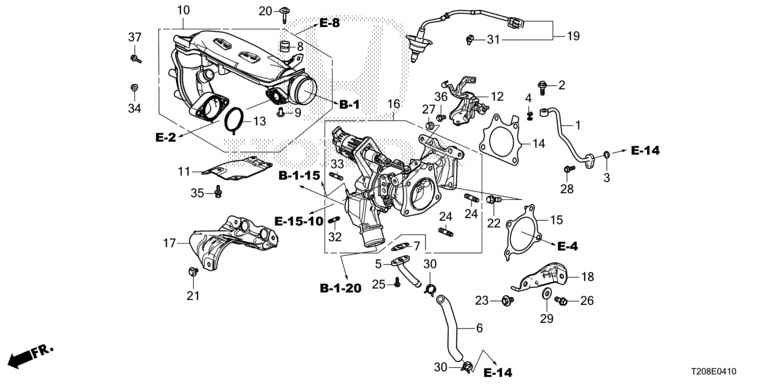

Ref No. Parts No. Parts Name 1 15530-6A0-A00 TURBOCHARGER OIL FEED PIPE 2 15532-59B-003 BOLT, OIL FEED PIPE ORIFICE 3 15533-59B-003 TURBOCHARGER OIL FEED FILTER 4 15535-6A0-A00 WASHER, SEALING 5…

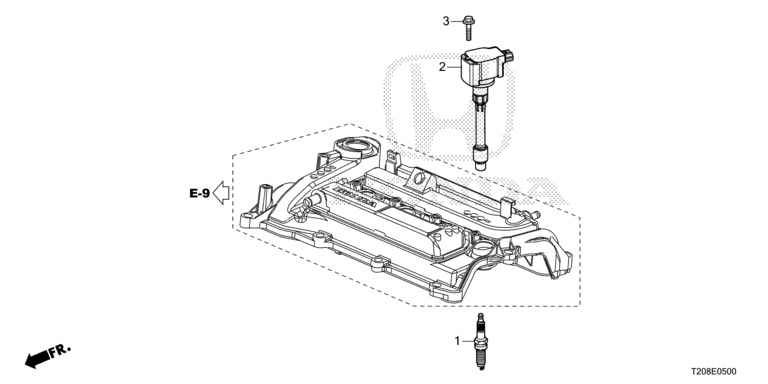

Ref No. Parts No. Parts Name 1 12290-6A0-A01 SPARK PLUG, (DILKAR8P8SY) (NGK) 2 30520-59B-013 IGNATION COIL, PLUG TOP 3 95701-06025-08 BOLT, FLANGE, 6X25

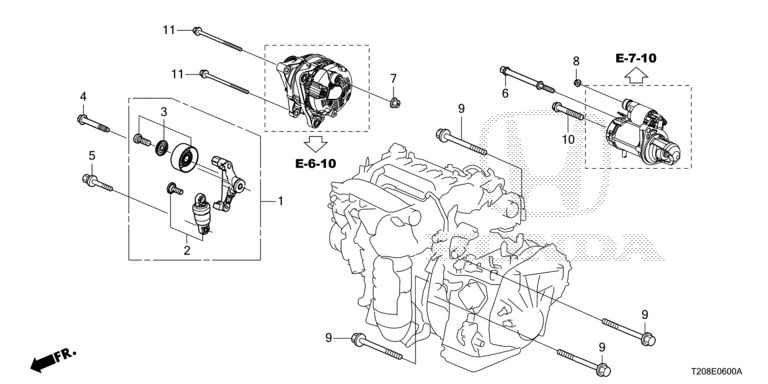

Ref No. Parts No. Parts Name 1 31170-59B-015 Drive Belt Auto-Tensioner 2 31179-59B-005 TENSIONER SET, HYDRAULIC 3 31189-51B-H02 PULLEY SET, TENSIONER 3 31189-R0A-015 PULLEY SET, TENSIONER 4 90001-59B-000 BOLT, FLANGE,…

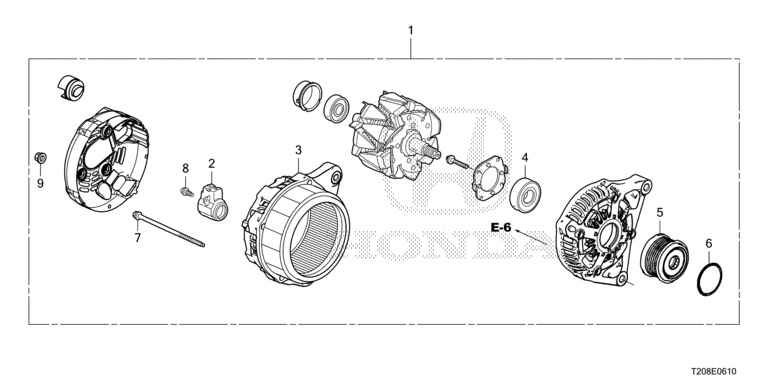

Ref No. Parts No. Parts Name 1 31100-5PA-A02 ALTERNATOR (CSP71) (DENSO) 2 31105-RL0-G01 HOLDER ASSY., BRUSH 3 31108-6NA-A01 FRAME ASSY., RR. STATOR 4 31112-5X6-J01 BEARING FRONT 5 31141-59B-J01 Over-Run Alternator…

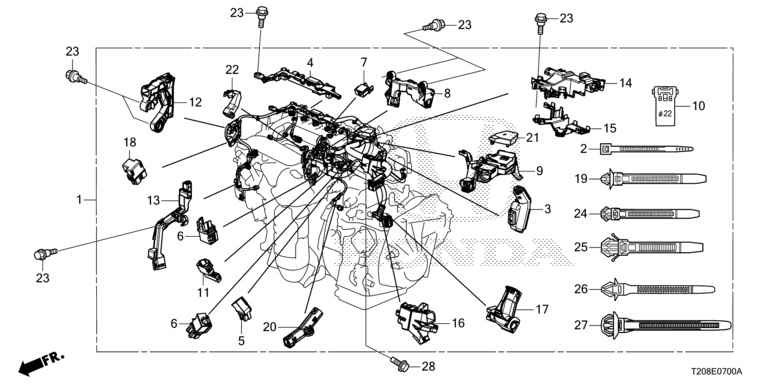

Ref No Parts No. Parts Name 1 32110-64A-X70 ENGINE WIRE HARNESS 2 32113-TA0-003 BAND, CABLE (BLACK) (100MM) 3 32118-R4H-A01 COVER, COUPLER (R.) (WPC 6P 090 F) 4 32121-59B-010 HOLDER, ENGINE…
