Honda HRV Hybrid Suspension Parts

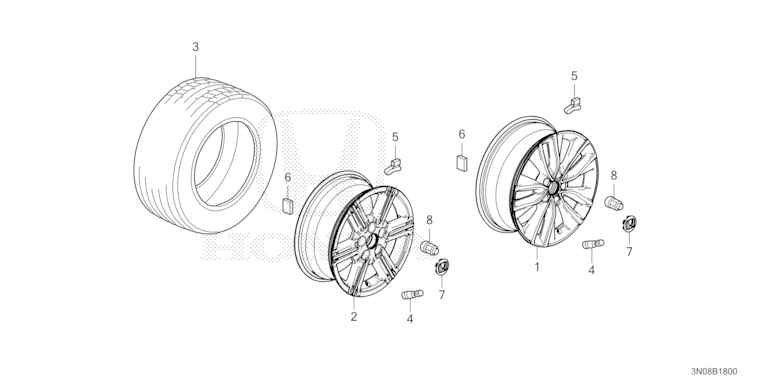

Ref No. Parts No. Parts Name 1 42700-3N1-T61 ALUMINIUM WHEEL (18X7 1/2J) (YACHIYODA) 3 42751-3N1-T13 TIRE (225/50R18 95V) (BRIDGESTONE) 3 42751-3N5-T01 TIRE (225/50R18 95V) (GHANDHARA) 4 42753-671-003 VALVE, RIM (TAIHEIYO)…

Ref No. Parts No. Parts Name 1 01473-T7A-J00 REAR BRAKE CALIPER 2 01473-T7A-P02 CALIPER PIN REAR 3 42101-T7A-000 CARRIER, R. RR. HUB (2WD) 4 42102-T7A-000 CARRIER, L. RR. HUB (2WD)…

Ref No. Parts No. Parts Name 1 44305-3N0-J01 DRIVESHAFT RIGHT 2 44306-3N0-J01 DRIVESHAFT LEFT 3 44310-3N0-315 INBOARD JOINT 4 44310-3N0-J11 INBOARD JOINT 5 44319-SD9-003 SET RING, 28X2.0 6 44319-SE0-000 SET…

Ref No. Parts No. Parts Name 1 44014-3L1-305 OUTBOARD JOINT SET 2 44014-3L1-306 OUTBOARD JOINT SET 3 44017-3L1-305 INBOARD BOOT SET 4 44017-3L1-306 INBOARD BOOT SET 5 44018-3L1-305 OUTBOARD BOOT…

Ref No. Parts No. Parts Name 1 01463-T2G-A01 CALIPER SERVICE KIT, FR. 2 43352-SM4-951 SCREW, BLEEDER 3 43353-SD5-003 CAP, BLEEDER SCREW 4 44300-TVE-H51 WHEEL BEARING FR. HUB 5 44600-T0B-A00 HUB…

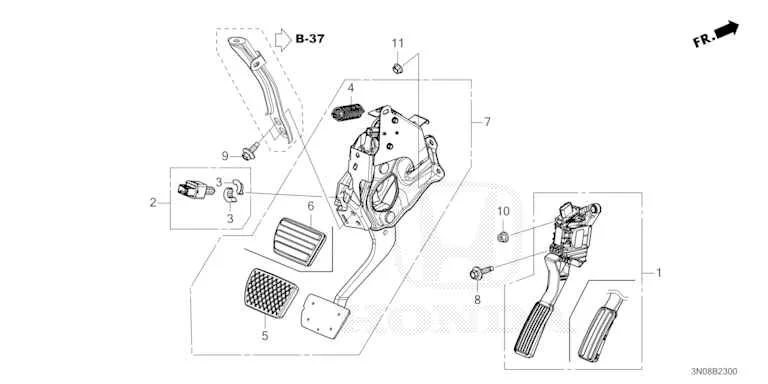

Ref No. Parts No. Parts Name 1 17800-T00-J01 ACCELERATOR PEDAL 2 36750-T3V-A01 STOP & CRUISE SWITCH 3 36751-T2A-A01 PIECE, ATTACHING (TOYO) 4 46530-3N0-N51 SPRING ASSY., PEDAL RETURN 5 46545-T00-J51 COVER,…

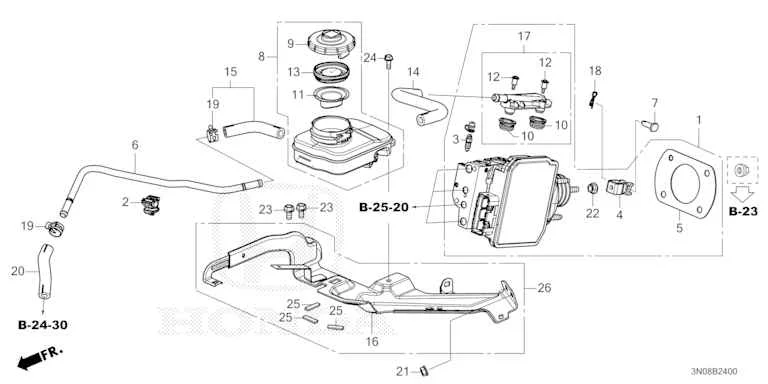

Ref No. Parts No. Parts Name 1 01469-3N1-T11 PEDAL FEEL SIMULATOR (REWRITABLE) 2 42514-TRT-J01 CLAMP, WIRE 3 43352-568-003 BLEEDER SCREW (NISSIN) 4 46151-SE0-003 YOKE, PUSH ROD (NISSIN) 5 46191-SDA-A00 GASKET,…

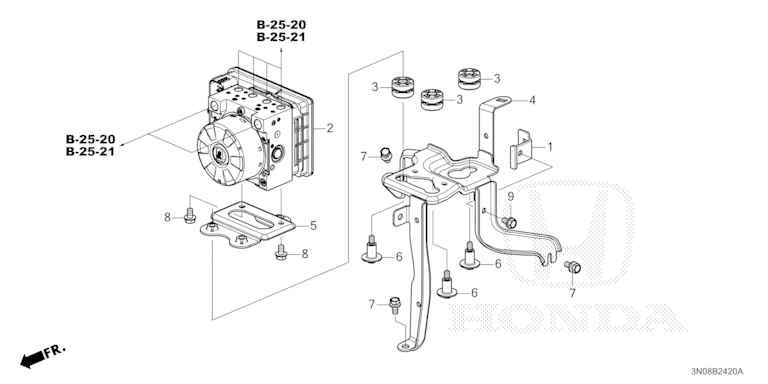

Ref No. Parts No. Parts Name 1 46398-3N0-J10 BRACKET, CLIP 2 57100-3N1-U11 VSA MODULATOR (REWRITABLE) 3 57101-TLA-A00 RUBBER B, MOUNTING 4 57115-3N0-J01 ABS MODULATOR BRACKET 5 57116-T00-T00 MODULATOR SUB BRACKET…

Ref No. Parts No. Parts Name 1 43352-568-003 BLEEDER SCREW (NISSIN) 2 45353-S3Y-003 BLEEDER CAP 3 46665-S04-J01 GROMMET 4 46668-SZW-J51 PIN, SPRING, 5X40 5 46680-3N0-J00 BLEEDER UNION 6 57101-TDL-J01 RUBBER…

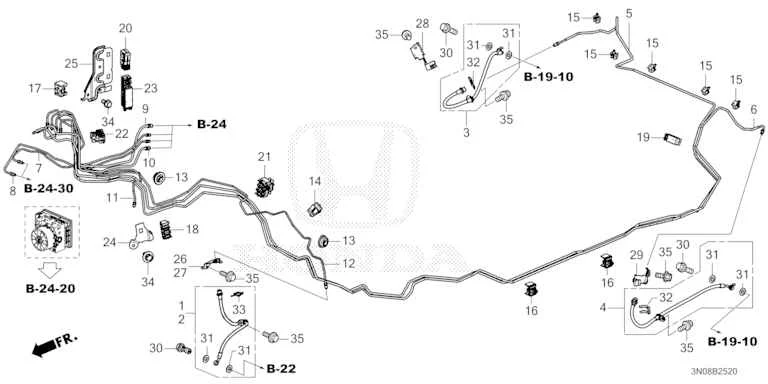

Ref No. Parts No. Parts Name 1 01464-T7W-A00 BRAKE HOSE R. FR. BRAKE 2 01465-T7W-A00 BRAKE HOSE L. FR. BRAKE 3 01466-3M0-J00 BRAKE HOSE R. RR. BRAKE 4 01468-3M0-J00 BRAKE…
