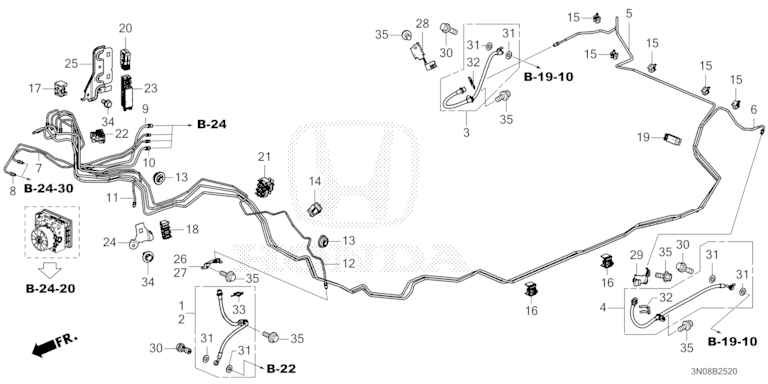

Brake Pipe
| Ref No. | Parts No. | Parts Name |
| 1 | 01464-T7W-A00 | BRAKE HOSE R. FR. BRAKE |
| 2 | 01465-T7W-A00 | BRAKE HOSE L. FR. BRAKE |
| 3 | 01466-3M0-J00 | BRAKE HOSE R. RR. BRAKE |
| 4 | 01468-3M0-J00 | BRAKE HOSE L. RR. BRAKE |
| 5 | 46330-3N1-T00 | BRAKE PIPE C, BRAKE |
| 6 | 46340-3N1-T00 | BRAKE BRAKE PIPE D |
| 7 | 46372-3N0-J03 | BRAKE BRAKE PIPE S |
| 8 | 46373-3N0-J02 | BRAKE PIPE T |
| 9 | 46374-3N0-J11 | BRAKE PIPE U |
| 10 | 46375-3N0-J01 | BRAKE PIPE V |
| 11 | 46376-3N0-J00 | BRAKE PIPE W |
| 12 | 46377-3N0-J00 | BRAKE PIPE X |
| 13 | 46380-SH3-000 | GROMMET A, BRAKE PIPE |
| 14 | 46391-SCV-A01 | CLIP, BRAKE PIPE |
| 15 | 46391-STK-A01 | CLIP, BRAKE PIPE |
| 16 | 46392-T5A-003 | CLIP, BRAKE PIPE |
| 17 | 46392-TMC-T01 | CLIP, BRAKE PIPE |
| 18 | 46393-T4N-H11 | CLIP, BRAKE PIPE |
| 19 | 46393-TF6-003 | CLIP, BRAKE PIPE |
| 20 | 46393-TPA-J01 | CLIP, BRAKE PIPE |
| 21 | 46395-T2F-A01 | CLIP, BRAKE PIPE |
| 22 | 46396-3N0-J01 | CLIP, BRAKE PIPE |
| 23 | 46396-TFT-H01 | CLIP, BRAKE PIPE |
| 24 | 46398-3M0-J00 | BRACKET, BRAKE PIPE |
| 25 | 46398-3N0-J01 | BRACKET, BRAKE PIPE |
| 26 | 46424-T7A-000 | BRAKE HOSE BRACKET, R. FR |
| 27 | 46425-T7A-000 | BRAKE HOSE BRACKET, L. FR |
| 28 | 46435-T7A-000 | BRAKE HOSE BRACKET A, R |
| 29 | 46436-T7A-000 | BRAKE HOSE BRACKET A, L |
| 30 | 46462-SE0-000 | BOLT, OIL |
| 31 | 46472-568-000 | PACKING, OIL BOLT |
| 32 | 90651-538-000 | BRAKE HOSE CLIP |
| 33 | 90651-538-000 | BRAKE HOSE CLIP |
| 34 | 95701-06012-08 | BOLT, FLANGE, 6X12 |
| 35 | 95701-08016-08 | BOLT, FLANGE, 8X16 |
