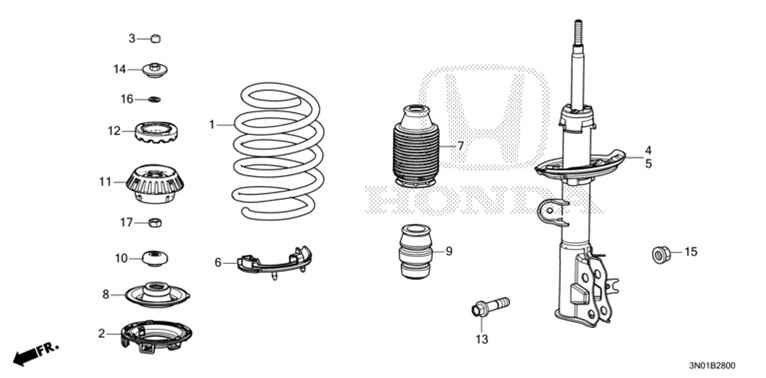

Front Damper
| Ref No | Part Number | Part Description |
| 1 | 51401-3N0-J02 | Spring, Front |
| 2 | 51402-3M0-J01 | Sheet, Front Spring Upper Clip |
| 3 | 51608-SLJ-000 | Cap, front damper |
| 4 | 51611-3N0-J51 | Damper Unit, R. Front |
| 5 | 51621-3N0-J51 | Damper Unit, L. Front |
| 6 | 51684-3M0-J01 | Rubber, front spring seat |
| 7 | 51686-3M0-J01 | Sleeve, Front Dust Cover Boot |
| 8 | 51688-3M0-J00 | Seat, Front Spring Upper |
| 9 | 51722-3M0-J02 | Rubber, Front Bump Stopper |
| 10 | 51726-SFA-005 | Bearing, damper mounting |
| 11 | 51920-SCC-015 | Rubber COMP., Front Damper Mounting |
| 12 | 51925-TF0-005 | Damper COMP., rebound stop |
| 13 | 90119-TR0-A00 | Bolt, Flange 16X62 |
| 13 | 90120-STK-000 | Bolt, Flange 16X62 Service Use |
| 14 | 90215-TM6-003 | Nut, Front Damper |
| 15 | 90382-STK-A01 | Nut, Flange 16MM |
| 16 | 90551-SAA-000 | Washer, wave 12MM |
| 17 | 94030-12280 | Nut, 6-Sided 12MM |
