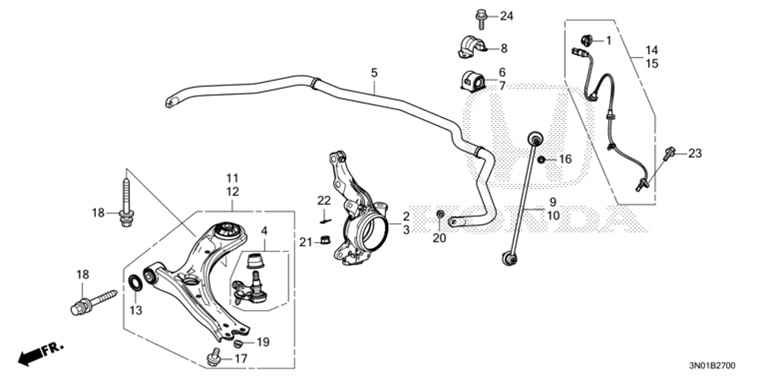

Front Lower Arm
| Ref No | Part Number | Part Description |
| 1 | 42533-SMG-E01 | Grommet, Harness Hidariyou |
| 2 | 51211-3M0-J00 | Front Knuckle Right |
| 3 | 51216-3M0-J00 | Knuckle, L. Front |
| 4 | 51220-3M0-J01 | Ball Joint Front Lower |
| 5 | 51300-3M0-J01 | Spring, Front Stabilizer |
| 6 | 51306-3M0-J01 | Bush, R. Front Stabilizer Holder |
| 7 | 51307-3M0-J01 | Bush, L. Front Stabilizer Holder |
| 8 | 51308-SWW-P50 | Bracket, Front Stabilizer |
| 9 | 51320-3M0-J01 | Link Assembly, R. Front Stabilizer |
| 10 | 51325-3M0-J01 | Link Stabilizer Assembly Left Front |
| 11 | 51350-3M0-J00 | Front Lower Arm Right |
| 12 | 51360-3M0-J00 | Arm ASSY., L. Front Lower |
| 13 | 51397-T00-T01 | Bush, Front Lower Arm Stopper |
| 14 | 57450-3M0-J01 | ABS Sensor Right. Front |
| 15 | 57455-3M0-J01 | ABS Sensor Left Front |
| 16 | 90002-S10-000 | Nut, flange 10MM |
| 17 | 90018-SNA-010 | Bolt, Flange 12X18 |
| 18 | 90118-3M0-J00 | Bolt washer 14X88 |
| 19 | 90215-SB0-003 | Nut, Self-Lock (12Mm) (Clinch) (Sato Rashi) |
| 20 | 90306-SB2-013 | Nut, Self Lock 10MM Crimp |
| 21 | 90363-S3V-A01 | Nut, Adjuster 14MM |
| 22 | 90701-SKC-003 | Pin, Split M14 |
| 23 | 95701-06012-08 | Bolt, Flange (6X12) |
| 24 | 95701-08018-08 | Bolt, Flange (8X18) |
