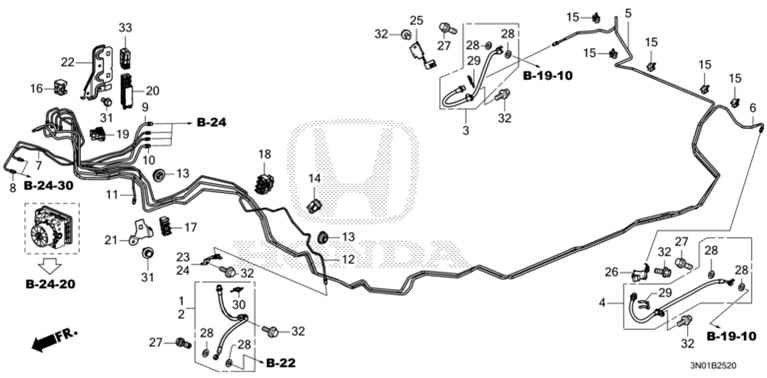

Brake Pipe
| Ref No | Part Number | Part Description |
| 1 | 01464-T7W-A00 | Brake Hose Set, R. Front |
| 2 | 01465-T7W-A00 | Brake Hose Set, L. Front |
| 3 | 01466-3M0-J00 | Brake Hose set, R. Rear |
| 4 | 01468-3M0-J00 | Brake Hose set, L. Rear |
| 5 | 46330-3N0-J00 | Brake Pipe Comp. C |
| 6 | 46340-3N0-J00 | Brake Pipe Comp. D |
| 7 | 46372-3N0-J03 | Brake Pipe COMP.S |
| 8 | 46373-3N0-J02 | Brake Pipe COMP.T |
| 9 | 46374-3N0-J11 | Brake Pipe COMP.U |
| 10 | 46375-3N0-J01 | Brake Pipe COMP.V |
| 11 | 46376-3N0-J00 | Brake Pipe COMP.W |
| 12 | 46377-3N0-J00 | Brake Pipe COMP.X |
| 13 | 46380-SH3-000 | Grommet A, Brake Pipe |
| 14 | 46391-SCV-A01 | Clip, Brake Pipe |
| 15 | 46391-STK-A01 | Clip, Brake Pipe |
| 16 | 46392-TMC-T01 | Clip, Brake Pipe |
| 17 | 46393-T4N-H11 | Clip, Brake Pipe |
| 18 | 46395-T2F-A01 | Clip, Brake Pipe |
| 19 | 46396-3N0-J01 | Clip, Brake Pipe |
| 20 | 46396-TFT-H01 | Clip, Brake Pipe |
| 21 | 46398-3M0-J00 | Bracket, Brake Pipe |
| 22 | 46398-3N0-J01 | Bracket, Brake Pipe |
| 23 | 46424-T7A-000 | Bracket, R. Front Brake Hose |
| 24 | 46425-T7A-000 | Bracket, L. Front Brake Hose |
| 25 | 46435-T7A-000 | Bracket A, R. brake hose |
| 26 | 46436-T7A-000 | Bracket A, L. brake hose |
| 27 | 46462-SE0-000 | Bolt, Oil |
| 28 | 46472-568-000 | Gasket, Oil Bolt |
| 29 | 90651-538-000 | Clip, Brake Hose |
| 30 | 90651-538-000 | Clip, Brake Hose |
| 30 | 90651-SV1-A01 | Clip, Brake Hose |
| 31 | 95701-06012-08 | Bolt, Flange (6X12) |
| 32 | 95701-08016-08 | Bolt, Flange (8X16) |
| 33 | 46393-TPA-J01 | Clip, Brake Pipe |
