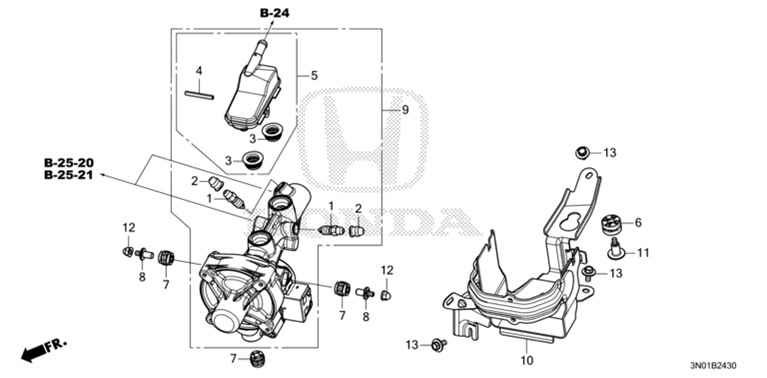

Tandem Motor Cylinder
| Ref No | Part Number | Part Description |
| 1 | 43352-568-003 | Screw Bleeder (Nissin) |
| 2 | 45353-S3Y-003 | Key, Bleeder |
| 3 | 46665-S04-J01 | Grommet |
| 4 | 46668-SZW-J51 | Pin, Spring 5X40 |
| 5 | 46680-3N0-J00 | Reservoir Union Set |
| 6 | 57101-TDL-J01 | Rubber B, Mount |
| 7 | 57101-TRT-J01 | Rubber A, Mount |
| 8 | 57102-T5C-000 | Bolt, Mounting |
| 9 | 57306-3N0-J02 | Tandem Motor Cylinder Set |
| 10 | 57315-3N0-J00 | Tandem Motor Cylinder Bracket |
| 11 | 57376-SNA-A00 | Bolt, Mounting |
| 12 | 90201-P8E-A00 | Nut, Cap 6MM |
| 13 | 93405-06016-08 | Bolt-Washer (6X16) |
