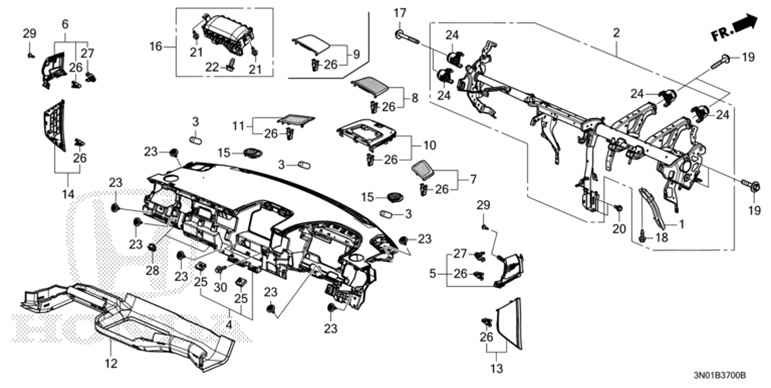

Instrument Panel
| Ref No | Part Number | Part Description |
| 1 | 46597-3N0-N00 | Pedal Stay |
| 2 | 61300-3M0-J30ZZ | Steering Hanger Beam |
| 3 | 66844-SA7-000 | Instrument Panel Stay Cap |
| 4 | 77100-3M0-000ZA | Instrument panel *NH900L* (NH900L Neutral Black |
| 5 | 77105-3M0-J01ZA | Instrument side upper Lid, R *NH900L* (NH900L neutral black |
| 6 | 77110-3M0-J01ZA | Instrument side upper Lid, L *NH900L* (NH900L neutral black |
| 7 | 77130-3M0-J11ZA | Tweeter upper stone side Lid *NH900L* (NH900L neutral black |
| 8 | 77131-3M0-J01ZA | Center Speaker Lid *NH900L 1* (NH900L 1 Neutral Black |
| 10 | 77133-3M0-J01ZA | Center display Panel *NH900L* (NH900L neutral black |
| 11 | 77135-3M0-J11ZA | Tweeter Lid |
| 12 | 77170-3M0-J21 | Instrument Panel Insulator |
| 13 | 77210-3M0-J01ZA | Instrument lower upper stone side Lid , *NH900L* (NH900L neutral black |
| 14 | 77215-3M0-J01ZA | Instrument lower lower stone side Lid , *NH900L* (NH900L neutral black |
| 15 | 77470-3M0-J01ZA | Side defroster Garnish, *NH900L* (NH900L neutral black |
| 16 | 77820-3M0-N81 | Partition Module |
| 17 | 90103-3M0-000 | Bolt washer 8X70 |
| 18 | 90104-SFE-003 | Bolt, Flange 8X23 |
| 19 | 90111-T9A-T30 | Bolt Washer 8X50 |
| 20 | 90113-SAA-003 | Bolt, Special 6X14 |
| 21 | 90133-T5A-J01 | Bolt, Flange 5X16 |
| 22 | 90134-T5A-J01 | Bolt, Flange 8X19 |
| 23 | 90140-SH3-003 | Bolt Washer 5X18 |
| 24 | 90310-TBA-A01 | Spacer, Adjust |
| 25 | 90321-T5A-J01 | Nut, Spring 5MM |
| 26 | 90666-TDK-003 | Clip, Snap Fastening PO |
| 27 | 90669-SHJ-A01 | Clip, Snap Fastening |
| 28 | 91640-SM4-003 | Grommet, Screw 4MM |
| 29 | 93913-14420 | Screw, Tapping (4X16) (Po) |
