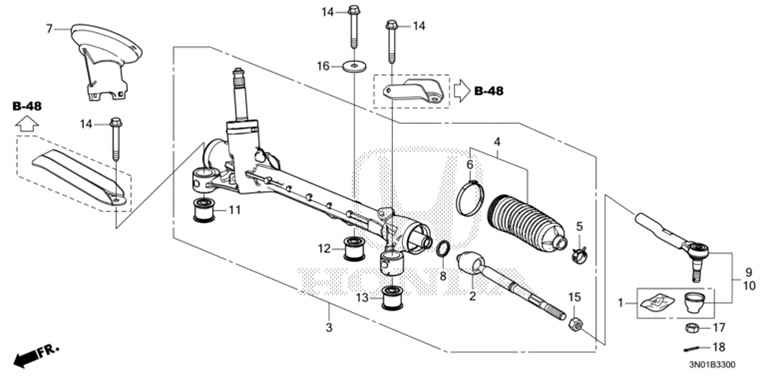

Steering
| Ref No | Part Number | Part Description |
| 1 | 06535-T4R-305 | Boot Set, Tie Rod End |
| 2 | 53010-T7A-003 | End assembly, Lock |
| 3 | 53400-3M0-J12 | Box ASSY., steering gear |
| 4 | 53429-T5B-003 | Seal set, tie rod dust |
| 5 | 53434-T5B-003 | Crimp |
| 6 | 53449-T5B-003 | Band, Bilows |
| 7 | 53501-T5A-000 | Grommet, Steering |
| 8 | 53537-T7A-003 | Spacer |
| 9 | 53540-3M0-013 | End COMP., R. Tie Rod |
| 10 | 53560-3M0-013 | End COMP., L. Tie Rod |
| 11 | 53684-T7A-003 | Bush A, Steering Rack Housing |
| 12 | 53685-T7A-003 | Bush B, Steering Rack Housing |
| 13 | 53686-T7A-003 | Bush C, Steering Rack Housing |
| 14 | 90167-T7A-000 | Bolt, Flange 10X71 |
| 15 | 90215-T5B-003 | Nut, 6 Hex 14MM |
| 16 | 90505-TF0-000 | Washer, Plain 10MM |
| 17 | 94030-12280 | Nut, 6-Sided 12MM |
| 18 | 94201-30220 | Pin, Split (3.0X22) |
