Side Mirror

76258-3M0-921

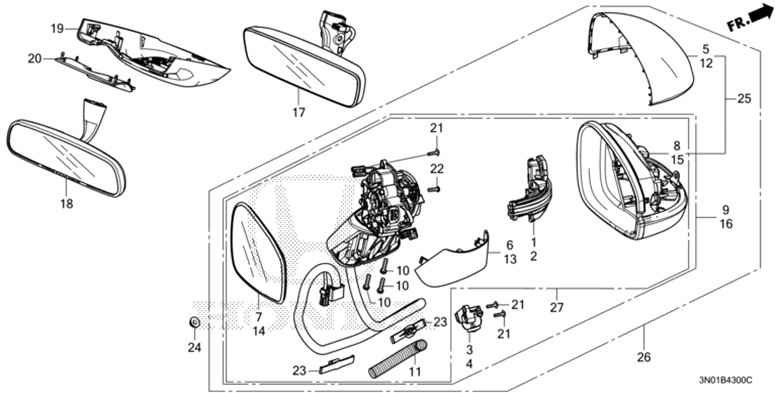

Ref No Part Number Part Description
1 34300-TRT-003 Side Turn Light Assembly R
2 34350-TRT-003 Side Turn Light Assembly L
3 36660-3M0-J01 Side Multi-View Camera Right
4 36670-3M0-J11 Side Multi-View Camera Left
5 76201-3M0-J02ZB Skull  Cap Right R565M Premium Crystal Red Metallic
5 76201-3M0-J02ZD Skull  Cap Right NH902P Premium Sunlight White Pearl
5 76201-3M0-J02ZE Skull  Cap Right NH883P Platinum White Pearl
5 76201-3M0-J02ZG Skull  Cap Right NH731P Crystal Black Pearl
5 76201-3M0-J02ZN Skull  Cap Right NH912P Slate Gray Pearl
5 76201-3M0-J02ZP Skull  Cap Right G555P Botanical Green Pearl
5 76201-3M0-J02ZQ Skull  Cap Right B645P Seabed Blue Pearl
6 76202-3M0-J01 base Cover Right
7 76203-3V0-J01 Mirror Sub ASSY right
8 76205-3M0-J32 Housing set, R
9 76208-3M0-921 Door Side Mirror Right
10 76211-TG1-T01 Screw, Tapping 5X20
11 76220-TRN-H01 Tube, Corrugate
12 76251-3M0-J01ZB Skull Cap Left  R565M Premium Crystal Red Metallic
12 76251-3M0-J01ZD Skull Cap Left NH902P Premium Sunlight White Pearl
12 76251-3M0-J01ZE Skull Cap Left NH883P Platinum White Pearl
12 76251-3M0-J01ZG Skull Cap Left NH731P Crystal Black Pearl
12 76251-3M0-J01ZN Skull Cap Left B645P Seabed Blue Pearl
12 76251-3M0-J01ZP Skull Cap Left G555P Botanical Green Pearl
12 76251-3M0-J01ZQ Skull Cap Left NH912P Slate Gray Pearl
13 76252-3M0-J01 base Cover L
14 76253-3V0-J01 Mirror Sub ASSY Left
15 76255-3V0-J21 Housing set, L
16 76258-3M0-921 Door Side Mirror Left
17 76400-3M0-J02 Rear View Auto Dimming Mirror
19 76412-3M0-J01ZA Cover ASSY., Sensor NH900L Neutral Black
20 76413-3M0-N01ZA Lid, sensor cover NH900L Neutral Black
21 90109-SAG-H01 Screw, Tapping 4X14 Truss
22 90109-TDE-003 Screw, Tapping 4X14 PAN
23 91555-TA0-003 Crisp, wire harness natural (70MM) seal
24 94071-06080 Nut-Washer (6Mm)
