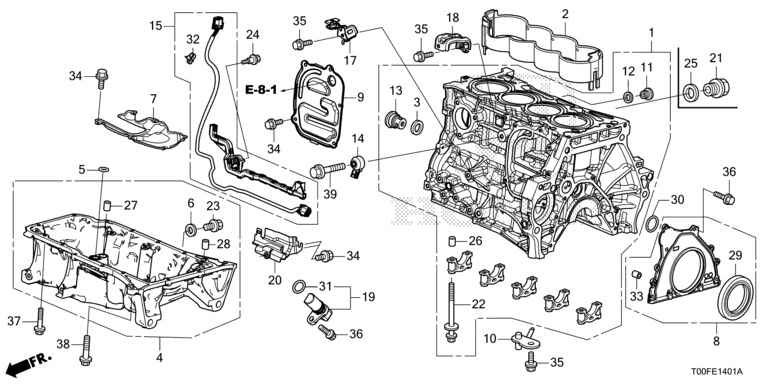

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 11000-62H-T00 | CYLINDER BLOCK | 001 |
| 2 | 11104-5R0-000 | SPACER COMP., COOLING CONTROL | 001 |
| 3 | 11107-RE2-E00 | WASHER, SEALING, 24MM | 001 |
| 4 | 11200-62F-T00 | PAN ASSY., OIL | 001 |
| 5 | 11203-RE2-E01 | O-RING, 17.8X2.4 (ARAI) | 001 |
| 6 | 11207-RE2-E00 | WASHER, DRAIN PLUG, 14MM | 001 |
| 7 | 11221-5R0-010 | PLATE, BAFFLE | 001 |
| 8 | 11300-62F-T00 | CASE COMP., OIL SEAL | 001 |
| 9 | 11850-5R0-000 | COVER, BREATHER | 001 |
| 10 | 15280-6Y0-009 | BODY COMP., OIL JET | 004 |
| 11 | 15301-PE0-300 | BOLT, SEALING, 14MM | 001 |
| 12 | 15302-RE2-E00 | WASHER, SEALING, 14MM | 001 |
| 13 | 15531-5R1-000 | BOLT COMP., VTC OIL FILTER | 001 |
| 14 | 30530-R1A-A01 | SENSOR, KNOCK | 001 |
| 15 | 32113-6KR-K00 | SUB HARNESS, CRANK SENSOR | 001 |
| 17 | 32744-5R0-000 | STAY COMP., L. ENGINE WIRE HARNESS BLOCK | 001 |
| 18 | 32745-5R0-000 | STAY COMP., R. ENGINE WIRE HARNESS BLOCK | 001 |
| 19 | 37500-59B-J01 | CRANK SENSOR | 001 |
| 20 | 37501-5R0-000 | COVER, CRANK SENSOR | 001 |
| 22 | 90008-5R0-003 | BOLT-WASHER, 10X75.5 | 010 |
| 23 | 90009-R70-A00 | BOLT, PLUG, 14MM | 001 |
| 24 | 90051-62H-T00 | BOLT, SPECIAL, 6X20.8 | 001 |
| 26 | 90702-PE0-000 | DOWEL PIN, 12X18 | 010 |
| 27 | 90705-RE2-E00 | DOWEL PIN, 16X22 | 001 |
| 28 | 90707-RE2-E00 | DOWEL PIN, 12X20 | 001 |
| 29 | 91214-62F-T01 | SEALÂ LOW TORQUE OIL, 80X94X8 (ARAI) | 001 |
| 30 | 91308-5R7-A01 | O-RING, 35.2X2.4 | 001 |
| 31 | 91333-PNC-006 | O-RING | 001 |
| 32 | 91506-RTA-003 | CLIP A, HARNESS BAND (DARK VIOLET) (129.4MM) | 001 |
| 33 | 94301-06100 | DOWEL PIN, 6X10 | 002 |
| 34 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 013 |
| 35 | 95701-06014-08 | BOLT, FLANGE, 6X14 | 006 |
| 36 | 95701-06016-08 | BOLT, FLANGE, 6X16 | 008 |
| 37 | 95701-06025-08 | BOLT, FLANGE, 6X25 | 014 |
| 38 | 95701-08030-08 | BOLT, FLANGE, 8X30 | 001 |
| 39 | 95701-08032-08 | BOLT, FLANGE, 8X32 | 001 |
