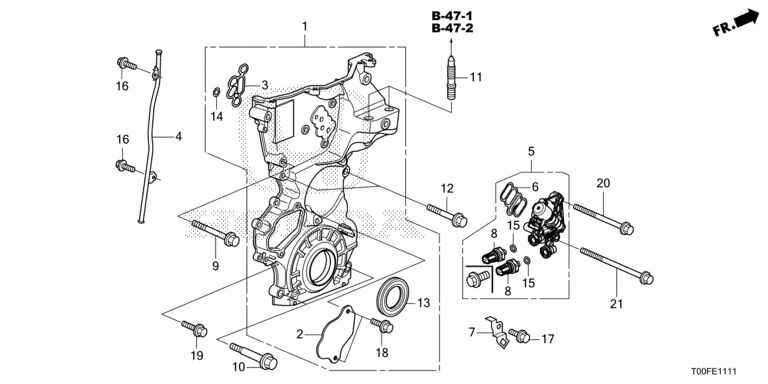

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 11410-62F-T00 | CASE ASSY., CHAIN | 001 |
| 2 | 11412-5R0-000 | COVER, CHAIN CASE | 001 |
| 3 | 11413-5R7-A01 | O-RING, CHAIN CASE (ARAI) | 001 |
| 4 | 15200-5R0-000 | PIPE COMP., OIL LEVEL | 001 |
| 5 | 15810-6X0-003 | VALVE ASSY., SPOOL | 001 |
| 6 | 15815-5R0-003 | FILTER ASSY., SPOOL VALVE | 001 |
| 7 | 32747-5R0-900 | STAY, ENGINE WIRE HARNESS CHAIN CASE LOWER | 001 |
| 8 | 37260-RNA-A01 | SENSOR, OIL PRESSURE | 002 |
| 9 | 90015-PF0-000 | BOLT, FLANGE, 8X53 | 004 |
| 10 | 90021-PWA-003 | BOLT, SPECIAL, 8X41 | 002 |
| 11 | 90041-6Y0-000 | BOLT, STUD, 14X65 | 002 |
| 12 | 90107-P4V-000 | BOLT, FLANGE, 8X40 | 002 |
| 13 | 91212-5R7-A01 | OIL SEAL, 40X55X7 (ARAI) | 001 |
| 14 | 91309-5R7-A01 | O-RING, 15X2.5 (ARAI) | 001 |
| 15 | 91319-PAA-A01 | O-RING, 13X1.5 | 002 |
| 16 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 002 |
| 17 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 001 |
| 18 | 95701-06016-08 | BOLT, FLANGE, 6X16 | 002 |
| 19 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 005 |
| 20 | 95701-06065-08 | BOLT, FLANGE, 6X65 | 002 |
| 21 | 95701-06080-08 | BOLT, FLANGE, 6X80 | 001 |
