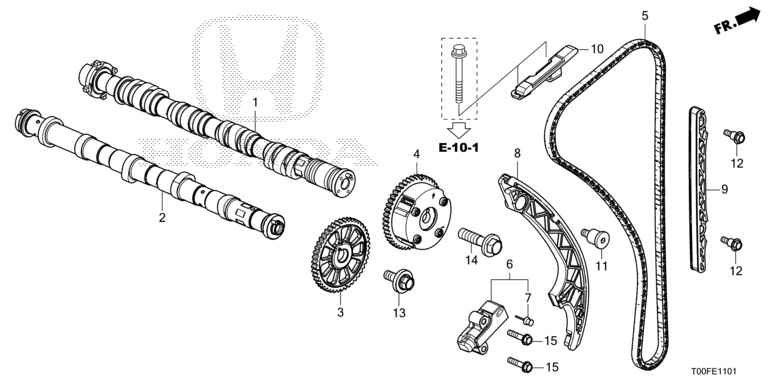

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 14110-62F-T00 | CAMSHAFT COMP., IN. | 001 |
| 2 | 14120-62F-T00 | CAMSHAFT COMP., EX. | 001 |
| 3 | 14211-62F-T00 | SPROCKET, CAM CHAIN DRIVEN (46T) | 001 |
| 4 | 14310-62F-T01 | VTC ACTUATOR (46T) | 001 |
| 5 | 14401-5K9-004 | CHAIN (170L) (BORG WARNER) | 001 |
| 6 | 14510-5R1-003 | CAM CHAIN TENSIONER | 001 |
| 7 | 14511-PNA-003 | STOPPER (TOOL) | (1) |
| 8 | 14520-5R0-J01 | ARM COMP., CAM CHAIN TENSIONER | 001 |
| 9 | 14530-5R0-J01 | GUIDE, CAM CHAIN | 001 |
| 10 | 14540-5R0-003 | GUIDE COMP. B, CAM CHAIN | 001 |
| 11 | 90003-PNA-000 | BOLT, TENSIONER PIVOT | 001 |
| 12 | 90007-679-000 | BOLT A, TIMING BELT COVER | 002 |
| 13 | 90031-RNA-A01 | BOLT-WASHER, 10X30 | 001 |
| 14 | 90032-PNA-000 | BOLT, FLANGE, 12X47 | 001 |
| 15 | 95701-06030-08 | BOLT, FLANGE, 6X30 | 002 |
