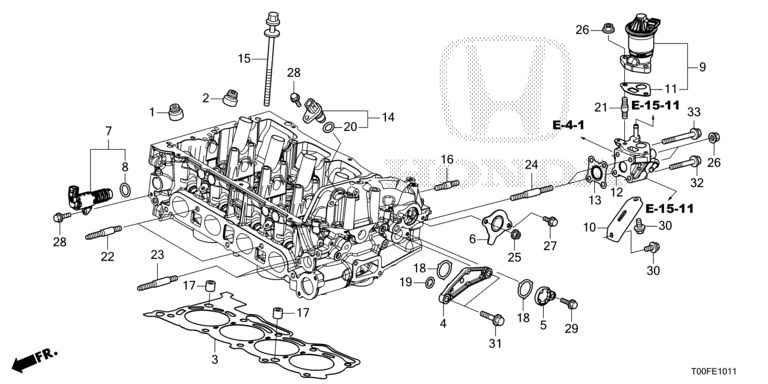

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 12210-RE2-E01 | SEAL A, VALVE STEM (ARAI) | 008 |
| 2 | 12211-RE2-E01 | SEAL B, VALVE STEM (ARAI) | 008 |
| 3 | 12251-5R0-J01 | GASKET COMP., CYLINDER HEAD (NOK) | 001 |
| 4 | 12511-5P6-000 | PLATE, CYLINDER HEAD IN. | 001 |
| 5 | 12512-5R0-J50 | PLATE, CYLINDER HEAD EX. | 001 |
| 6 | 12513-5R0-000 | COVER, CAMSHAFT HOLDER | 001 |
| 7 | 15830-5R1-J02 | VALVE ASSY., VTC OIL CONTROL | 001 |
| 8 | 15832-PNA-023 | O-RING | 001 |
| 9 | 18011-5R0-010 | EGR VALVE | 001 |
| 10 | 18714-5R1-010 | STAY, EGR PASSAGE | 001 |
| 11 | 18715-PB2-000 | GASKET, EGR VALVE (ISHINO GASKET) | 001 |
| 12 | 18718-5R1-J50 | PASSAGE COMP., EGR VALVE | 001 |
| 13 | 18723-5R0-J01 | GASKET, EGR PASSAGE | 001 |
| 14 | 37510-59B-J01 | SENSOR ASSY., TDC | 001 |
| 15 | 90008-PWA-003 | BOLT-WASHER, 9X155 | 010 |
| 16 | 90026-RMX-000 | BOLT, STUD, 8X22 | 002 |
| 17 | 90706-RE2-E00 | DOWEL PIN, 14X20 | 002 |
| 18 | 91301-5R7-A01 | O-RING A, HEAD PLATE | 002 |
| 19 | 91303-5R7-A01 | O-RING B, HEAD PLATE | 001 |
| 20 | 91333-PNA-003 | O-RING, 15X1.9 | 001 |
| 21 | 92900-08022-1B | BOLT, STUD, 8X22 | 002 |
| 22 | 92900-08032-1B | BOLT, STUD, 8X32 | 002 |
| 23 | 92900-08050-1B | BOLT, STUD, 8X50 | 002 |
| 24 | 92900-08080-0B | BOLT, STUD, 8X80 | 002 |
| 25 | 94050-06080 | NUT, FLANGE, 6MM | 001 |
| 26 | 94050-08080 | NUT, FLANGE, 8MM | 004 |
| 27 | 95701-06014-08 | BOLT, FLANGE, 6X14 | 001 |
| 28 | 95701-06016-08 | BOLT, FLANGE, 6X16 | 002 |
| 29 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 001 |
| 30 | 95701-08016-08 | BOLT, FLANGE, 8X16 | 002 |
| 31 | 95701-08030-08 | BOLT, FLANGE, 8X30 | 002 |
| 32 | 95701-08055-08 | BOLT, FLANGE, 8X55 | 001 |
| 33 | 95701-08080-08 | BOLT, FLANGE, 8X80 | 001 |
