Honda HRV Hybrid Body Parts

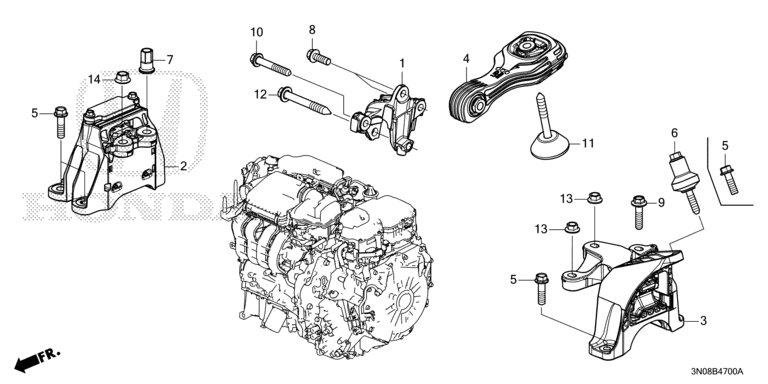

Ref No. Parts No. Parts Name 1 50690-TZB-J61 BRACKET, TORQUE ROD LOWER 2 50820-3N0-T52 ENGINE MOUNTING (FHEV) 3 50850-TZB-J53 TRANSMISSION MOUNTING (FHEV) 4 50890-3M0-J12 LOWER TORQUE ROD 5 90160-TZA-000 BOLT,…

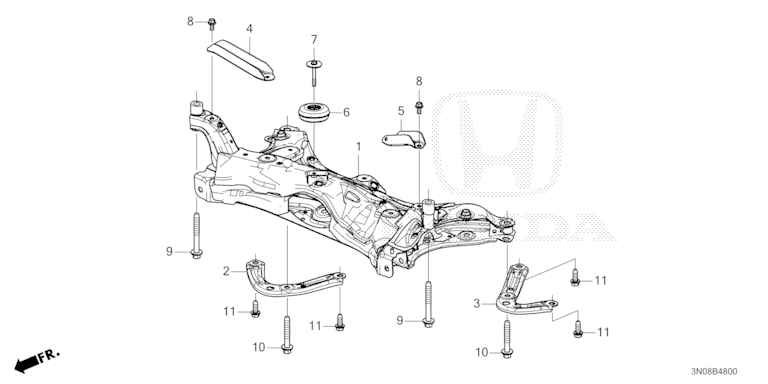

Ref No. Parts No. Parts Name 1 50200-3N0-J01 SUSPENSION SUB FRAME FR 2 50275-T5E-000 SUB FRAME STAY, R. RR 3 50276-T5E-000 STAY, L. RR. SUB FRAME 4 50290-T8M-000 STAY, R.…

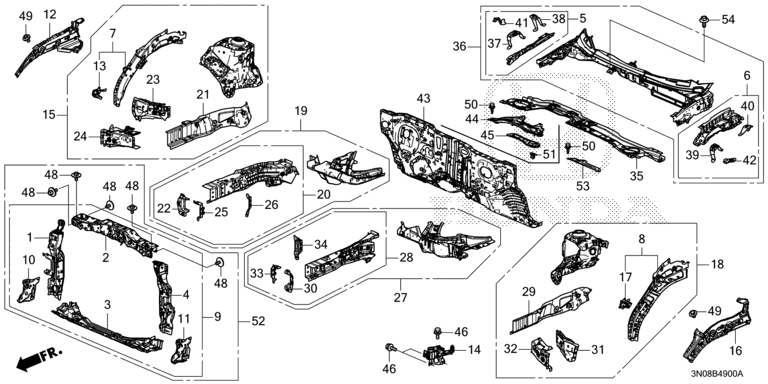

Ref No. Parts No. Parts Name 1 04601-3M1-T00ZZ STAY SET, R. FR. BULKHEAD SIDE 2 04602-3N0-300ZZ FRAME SET, FR. BULKHEAD UPPER 3 04603-3N0-300ZZ CROSSMEMBER SET, FR. BULKHEAD LOWER 4 04611-3M1-T00ZZ…

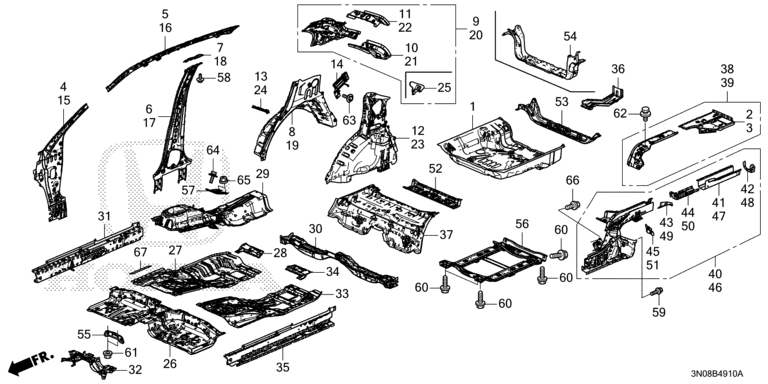

Ref No. Parts No. Parts Name 1 04655-3N1-T00ZZ FLOOR PANEL SET, RR 2 04656-3N1-T00ZZ STIFFENER SET, R. RR. FRAME UPPER (B) 3 04657-3N1-T00ZZ STIFFENER SET, L. RR. FRAME UPPER (B)…

Ref No. Parts No. Parts Name 1 04631-3N1-T00ZZ SIDE SILL PANEL, R 2 04635-3N1-T00ZZ OUTSIDE PANEL, R. FR 3 04636-3N1-T00ZZ OUTSIDE PANEL SET, R. RR 4 04641-3M4-M00ZZ SIDE SILL PANEL,…

Ref No. Parts No. Parts Name 1 60210-3M1-000ZZ FENDER PANEL R. FR 2 60216-3M0-300ZZ BRACKET, R. FR. FENDER UPPER 3 60260-3M1-000ZZ FENDER PANEL L. FR 4 60266-3M0-300ZZ BRACKET, L. FR.…

Ref No. Parts No. Parts Name 1 60100-3N1-T00ZZ ENGINE HOOD 2 60120-3N1-T00ZZ HOOD HINGE Right 3 60170-3N1-T00ZZ HOOD HINGE Left 4 70057-SNA-A00 CLIP, SUNROOF DRAIN TUBE 5 71507-S3E-003 CLIP, MAIN…

Ref No. Parts No. Parts Name 2 73111-3N1-T62 WINDSHIELD GLASS FRONT (GREEN) (AGC) 3 73125-3M0-003 MOLDING, FR. WINDSHIELD SIDE 4 73150-3M0-003 MOLDING, FR. WINDSHIELD 5 73151-3M0-003 MOLDING, FR. WINDSHIELD LOWER…

Ref No. Parts No. Parts Name Unit Qty 1 73211-3N1-K01 WINDSHIELD GLASS Rear (GREEN) (AGC) 001 2 73213-3N1-K01 WINDSHIELD DAM RUBBER, R (A) 001 3 73215-3N1-K01 RUBBER, WINDSHIELD DAM (B)…

Ref No. Parts No. Parts Name 1 72210-3M0-J01 DOOR POWER REGULATOR ASSY., R. FR 2 72231-3M0-J01 DOOR CENTER LOWER SASH, R. FR 3 72235-3M0-J01 DOOR RUNCHANNEL, R. F 4 72250-3M0-J01…
