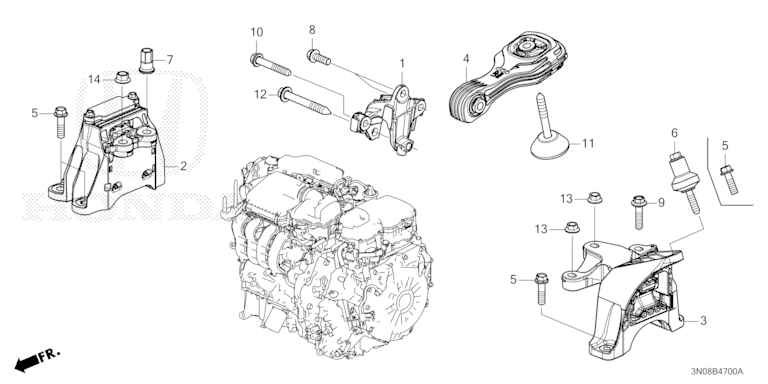

Engine Mount
| Ref No. | Parts No. | Parts Name |
| 1 | 50690-TZB-J61 | BRACKET, TORQUE ROD LOWER |
| 2 | 50820-3N0-T52 | ENGINE MOUNTING (FHEV) |
| 3 | 50850-TZB-J53 | TRANSMISSION MOUNTING (FHEV) |
| 4 | 50890-3M0-J12 | LOWER TORQUE ROD |
| 5 | 90160-TZA-000 | BOLT, FLANGE, 12X45 |
| 7 | 90162-TZB-J51 | NUT, FLANGE, 14MM |
| 8 | 90164-T0A-A00 | BOLT, FLANGE, 12X35 |
| 9 | 90167-TBA-A00 | BOLT, FLANGE, 12X50 |
| 10 | 90170-TBA-A00 | BOLT, FLANGE, 12X80 |
| 11 | 90180-T5R-000 | BOLT, MASS, 14X110 |
| 12 | 90188-TF0-000 | BOLT, FLANGE, 14X113 |
| 13 | 90371-TBA-A00 | NUT, FLANGE, 12MM |
| 14 | 90385-SWA-000 | NUT, FLANGE, 14MM |
