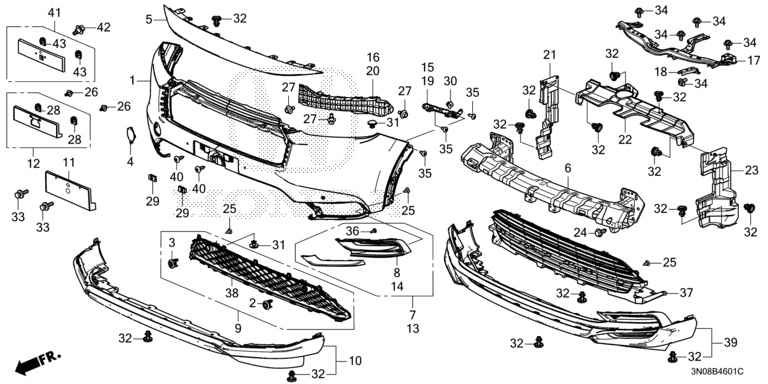

Front Bumper
| Ref No. | Parts No. | Parts Name |
| 1 | 04711-3M1-Y50ZZ | FRONT BUMPER |
| 4 | 71106-3M0-J50ZJ | COVER, FR. TOWING HOOK *T99* (T99 UNPAINTED) |
| 5 | 71110-3M1-T00ZB | GARNISH ASSY., FR. BUMPER UPPER *T99* (T99 UNPAINTED) |
| 6 | 71130-3N1-T00ZZ | BEAM COMP., FR. BUMPER |
| 7 | 71140-3M1-K30 | GARNISH, R. FR. FOG LIGHT |
| 10 | 71160-3M1-T20 | FACE ASSY., FR. BUMPER LOWER |
| 13 | 71190-3M1-K30 | GARNISH, L. FR. FOG LIGHT |
| 15 | 71230-3M0-003 | SPACER, R. FR. BUMPER SIDE |
| 16 | 71240-3M0-000 | BEAM, R. FR. BUMPER CORNER UPPER |
| 17 | 71250-3M0-000 | BEAM COMP., FR. BUMPER CENTER UPPER |
| 18 | 71253-3M0-300 | STAY A, STIFFENER UPPER BEAM CENTER |
| 19 | 71280-3M0-003 | SPACER, L. FR. BUMPER SIDE |
| 20 | 71290-3M0-000 | BEAM, L. FR. BUMPER CORNER UPPER |
| 21 | 71325-3N1-T00 | PLATE, R. FR. SIDE INDUCTION |
| 22 | 71355-3N1-T00 | PLATE, FR. BUMPER UPPER INDUCTION |
| 23 | 71375-3N1-T00 | PLATE, L. FR. SIDE INDUCTION |
| 24 | 90110-T5A-J00 | BOLT-WASHER, 8X21 |
| 25 | 90113-SJA-A00 | SCREW, TAPPING, 5X14 |
| 27 | 90144-TL0-G00 | BOLT, BUMPER |
| 30 | 90682-SDA-A01 | GROMMET, SCREW, 5MM |
| 31 | 91501-TR0-003 | CLIP, INNER FENDER |
| 32 | 91505-TM8-003 | CLIP, BUMPER (NIFCO) |
| 34 | 93405-06016-04 | BOLT-WASHER, 6X16 |
| 35 | 93903-25320 | SCREW, TAPPING, 5X16 |
| 38 | 71151-3N1-T10 | GRILLE, FR. BUMPER LOWER |
| 41 | 71180-3N1-Y50 | BASE, FR. LICENSE PLATE |
| 42 | 90144-TL0-G00 | BOLT, BUMPER |
| 43 | 90305-SM4-000 | NUT, AIR SPOILER CLIP |
