Honda HRV Hybrid Transmission Parts

Ref No. Parts No. Parts Name 1 21110-60H-000 FLYWHEEL CASE 3 21340-60H-000 BAFFLE PLATE 4 21396-P20-000 BREATHER CAP 5 23225-60H-000 PLATE C, OIL GUIDE 6 25150-60H-000 OIL PUMP SHAFT COMP…

Ref No. Parts No. Parts Name 1 1N493-5Y3-000 TRANSMISSION CASE STAY, L. SIDE 2 90380-TRN-H00 BOLT, STUD, 12X74 3 94301-10160 DOWEL PIN, 10X16 4 95701-06016-08 BOLT, FLANGE, 6X16

Ref No. Parts No. Parts Name 1 1A710-5M4-003 ATF TEMPERATURE SENSOR 2 22713-5M4-000 FEED PIPE GUIDE A 3 22715-5M4-000 FEED PIPE. A 4 22730-5M4-000 FEED PIPE. B, 5 25422-RJ2-003 TRANSMISSION…

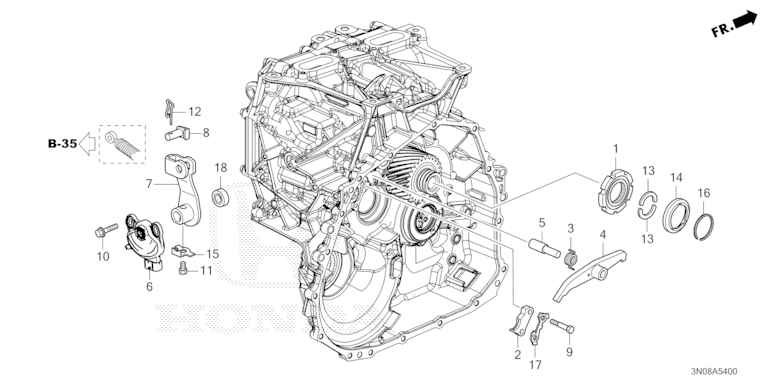

Ref No. Parts No. Parts Name 1 23427-5Y4-000 PARKING GEAR 2 24543-P4V-000 HOLDER, PARKING BRAKE ROD 3 24552-5M4-000 SPRING, PARKING PAWL 4 24561-5M4-000 PARKING BRAKE PAWL 5 24562-5M4-000 PARKING SHAFT…

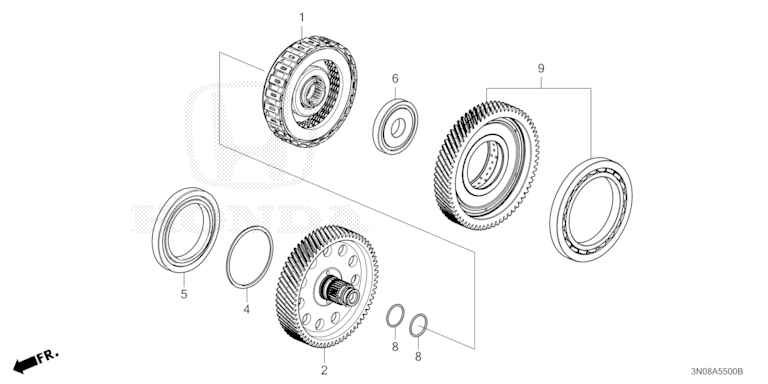

Ref No. Parts No. Parts Name 1 22500-60H-003 OVER DRIVE CLUTCH 2 23210-60H-000 INPUT SHAFT 4 90391-5M4-000 SHIM A, 77MM (1.576) 4 90392-5M4-000 SHIM B, 77MM (1.601) 4 90393-5M4-000 SHIM…

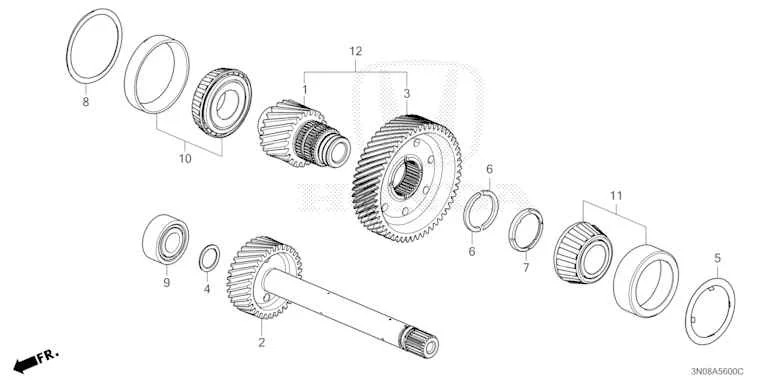

Ref No. Parts No. Parts Name 1 23221-6JK-010 COUNTERSHAFT 2 23231-60H-000 GENERATOR SHAFT 3 23451-60H-010 MOTOR DRIVEN GEAR 4 90291-5M4-000 SHIM A, 28MM (1.219) 4 90292-5M4-000 SHIM B, 28MM (1.244)…

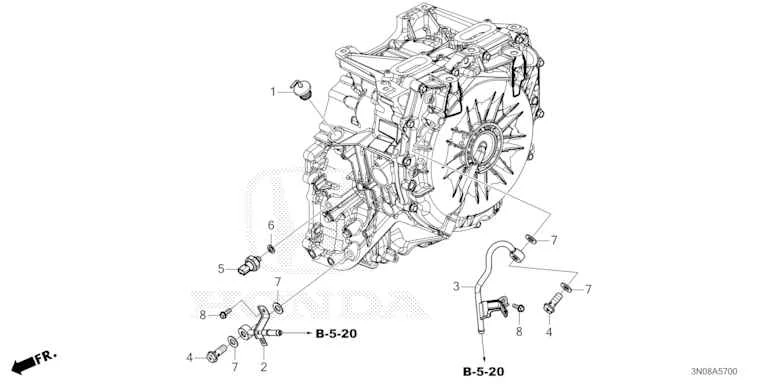

Ref No. Parts No. Parts Name 1 25615-RJ2-004 ATF CVT  FILLER CAP (A) 2 25910-5Y4-000 ATF PIPE A 3 25920-60H-000 ATF PIPE B 4 25951-RGR-000 BOLT, JOINT 5 28660-6GA-003 OIL…

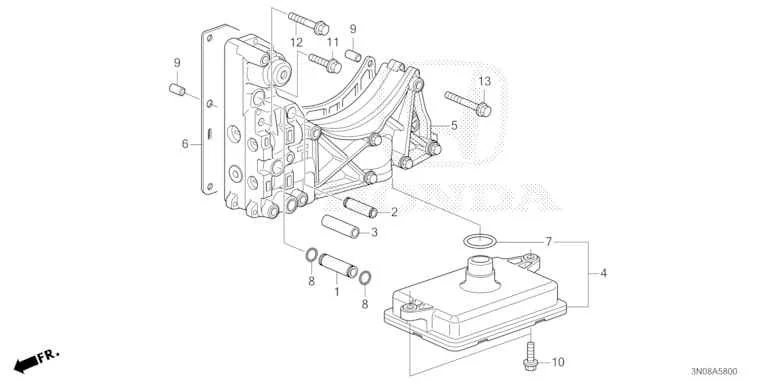

Ref No. Parts No. Parts Name 1 22744-5M4-000 PIPE, 10.8X35 2 22770-5M4-000 PIPE COMP., JOINT (8X44.1) 3 25313-5M4-000 PIPE, 10X46.5 4 25420-60H-003 ATF STRAINER 5 27100-60H-003 VALVE BODY 6 27212-60H-000…

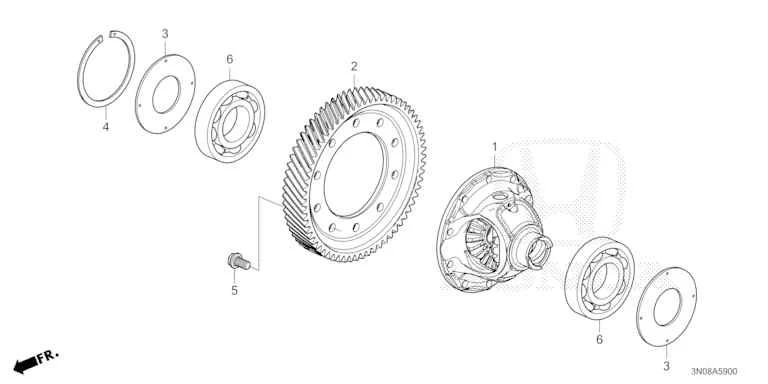

Ref No. Parts No. Parts Name 1 41100-6JK-003 DIFFERENTIAL 2 41233-6JK-000 FINAL DRIVEN GEAR 3 41381-60H-000 SPACER, 41X88X1 4 41441-60H-000 SHIM A, 88MM (1.647) 4 41442-60H-000 SHIM B, 88MM (1.672)…
