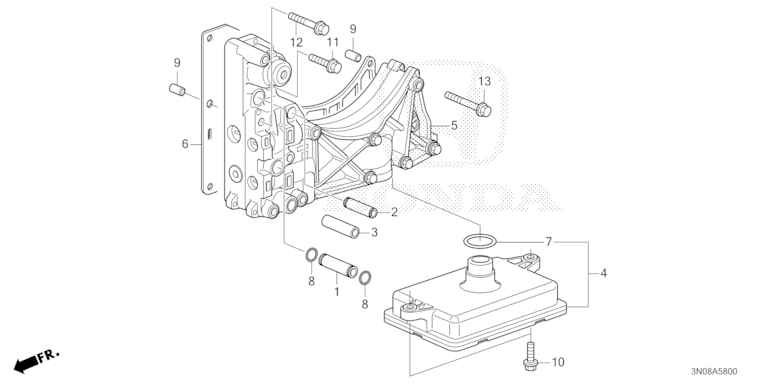

Vlave Body
| Ref No. | Parts No. | Parts Name |
| 1 | 22744-5M4-000 | PIPE, 10.8X35 |
| 2 | 22770-5M4-000 | PIPE COMP., JOINT (8X44.1) |
| 3 | 25313-5M4-000 | PIPE, 10X46.5 |
| 4 | 25420-60H-003 | ATF STRAINER |
| 5 | 27100-60H-003 | VALVE BODY |
| 6 | 27212-60H-000 | PLATE, REGULATOR SEPARATING |
| 7 | 91308-5LJ-003 | O-RING, 21.8X1.9 (NOK) |
| 7 | 91308-PW4-003 | O-RING, 21.8X1.9 (NOK) |
| 8 | 91311-PA9-004 | O-RING, 7.7X1.9 (NOK) |
| 9 | 94301-08140 | DOWEL PIN, 8X14 |
| 10 | 95701-06025-08 | BOLT, FLANGE, 6X25 |
| 11 | 95701-06030-08 | BOLT, FLANGE, 6X30 |
| 12 | 95701-06060-08 | BOLT, FLANGE, 6X60 |
| 13 | 95701-06070-08 | BOLT, FLANGE, 6X70 |
