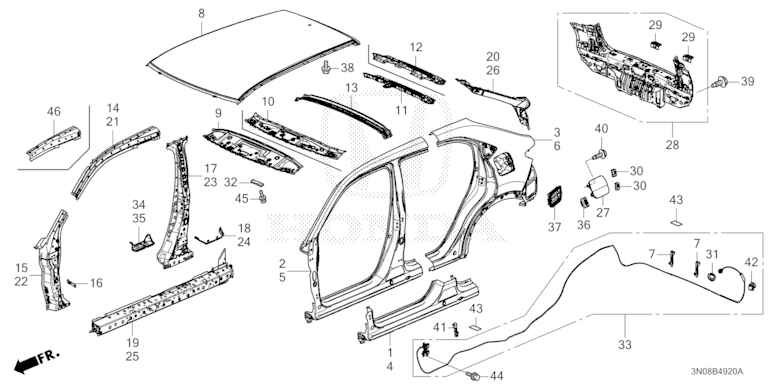

Rear Outer Panel

62100-3N1-T00ZZ HRV

Ref No. Parts No. Parts Name
1 04631-3N1-T00ZZ SIDE SILL PANEL, R
2 04635-3N1-T00ZZ OUTSIDE PANEL, R. FR
3 04636-3N1-T00ZZ OUTSIDE PANEL SET, R. RR
4 04641-3M4-M00ZZ SIDE SILL PANEL, L
5 04645-3M4-M00ZZ OUTSIDE PANEL, L. FR
6 04646-3M4-M00ZZ OUTSIDE PANEL SET, L. RR
7 32133-SLA-003 BAND, HARNESS OFFSET (30) (DARK GRAY) (145MM)
8 62100-3N1-T00ZZ ROOF PANEL
9 62120-3M0-300ZZ ROOF RAIL, FR
11 62130-3M0-300ZZ ROOF RAIL, RR.
13 62141-3M0-300ZZ ROOF ARCH A
14 63120-3N1-T00ZZ STIFFENER COMP., R. FR. PILLAR UPPER
15 63130-3N1-305ZZ STIFFENER COMP., R. FR. PILLAR LOWER
16 63139-3M0-003 SEPARATOR, FR. PILLAR OUTSIDE
17 63210-3N1-305ZZ STIFFENER COMP., R. CENTER PILLAR
18 63219-3M0-003 SEPARATOR, R. CENTER PILLAR OUTSIDE
19 63220-3N1-T00ZZ STIFFENER COMP., R. SIDE SILL
20 63320-3M0-300ZZ GUTTER COMP., R. RR.
22 63530-3N1-305ZZ STIFFENER COMP., L. FR. PILLAR LOWER
23 63610-3N1-305ZZ STIFFENER COMP., L. CENTER PILLAR
24 63619-3M0-003 SEPARATOR, L. CENTER PILLAR OUTSIDE
25 63620-3N1-T00ZZ STIFFENER COMP., L. SIDE SILL
26 63720-3M0-300ZZ GUTTER COMP., L. RR.
27 63910-3M0-000ZZ LID COMP., FUEL FILLER
28 66100-3N1-T00ZZ PANEL COMP., RR.
29 66116-T4T-T00ZZ BRACKET, RR. BUMPER UPPER
30 70495-692-000 CUSHION, FUEL FILLER LID
31 73219-693-951 SEAL, FUEL LID OPENER (GREEN)
32 74301-3M0-000 DAMPER, FR. ROOF RAIL
33 74411-3M0-003ZA CABLE, FUEL LID OPENER *NH900L* (NH900L NEUTRAL BLACK)
34 74415-3N1-T00 SHELF, R. CENTER PILLAR LOWER
35 74416-3N1-T00 SHELF, L. CENTER PILLAR LOWER
36 74494-S84-A10 SPRING, FUEL LID OPEN
37 75450-TRN-H02 OUTLET ASSY., RR. AIR
40 90147-634-003 BOLT, FENDER, 6X18
41 90653-T5A-003 CLIP, WASHER CABLE
42 91505-TF0-G01 CLIP, HOOD OPEN WIRE
43 91903-SNA-003 PLASTER, WIRE HARNESS (50X100) (SHIMIZU)
44 93402-06012-08 BOLT-WASHER, 6X12
45 93404-06020-09 BOLT-WASHER, 6X20
46 63522-3N1-T00ZZ STIFFENER, L. ROOF SIDE
