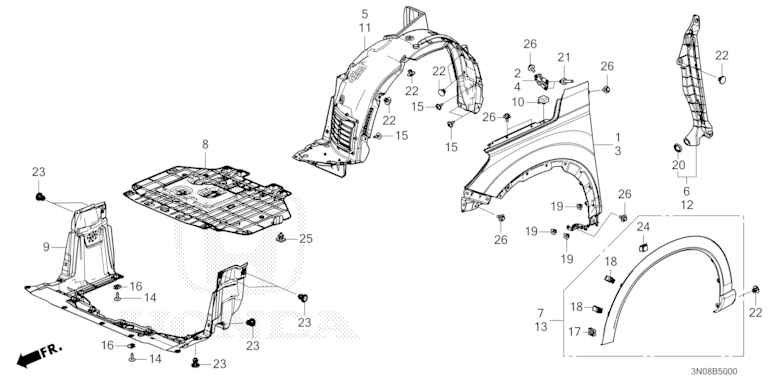

Front Fender
| Ref No. | Parts No. | Parts Name |
| 1 | 60210-3M1-000ZZ | FENDER PANEL R. FR |
| 2 | 60216-3M0-300ZZ | BRACKET, R. FR. FENDER UPPER |
| 3 | 60260-3M1-000ZZ | FENDER PANEL L. FR |
| 4 | 60266-3M0-300ZZ | BRACKET, L. FR. FENDER UPPER |
| 5 | 74100-3M1-T00 | FENDER ASSY., R. FR. INNER |
| 6 | 74105-3N0-000 | ENCLOSURE, R. FR. FENDER |
| 7 | 74107-3N1-T01 | PROTECTOR, R. FR. WHEEL ARCH |
| 8 | 74114-3N1-T00 | LID ASSY., ENGINE UNDER COVER |
| 9 | 74115-3M0-000 | SPLASH GUARD, FR |
| 10 | 74146-3M0-000 | HOOD CUSHION |
| 11 | 74150-3N1-T00 | FENDER ASSY., L. FR. INNER |
| 12 | 74155-3N0-000 | ENCLOSURE, L. FR. FENDER |
| 13 | 74157-3N1-T01 | PROTECTOR, L. FR. WHEEL ARCH |
| 14 | 90114-SE0-000 | SCREW, TAPPING, 5X20 |
| 15 | 90114-SZ3-000 | SCREW-WASHER, 5X20 |
| 16 | 90308-SB2-013 | NUT, SUSPENSION, 5MM |
| 17 | 90331-SD5-003 | NUT, SPRING, 5MM |
| 18 | 90601-SMG-003 | CLIP, SNAP FITTING |
| 19 | 90682-SB0-003 | GROMMET, SCREW, 5MM |
| 20 | 90825-T2A-003 | GROMMET, 25MM |
| 21 | 90853-SZT-G01 | RIVET, 4.8MM |
| 22 | 91501-TR0-003 | CLIP, INNER FENDER |
| 23 | 91505-TM8-003 | CLIP, BUMPER (NIFCO) |
| 24 | 91513-T0A-A11 | CLIP, ARCH PROTECTOR |
| 25 | 91514-TG1-T01 | CLIP, UNDER COVER |
| 26 | 93405-06016-08 | BOLT-WASHER, 6X16 |
