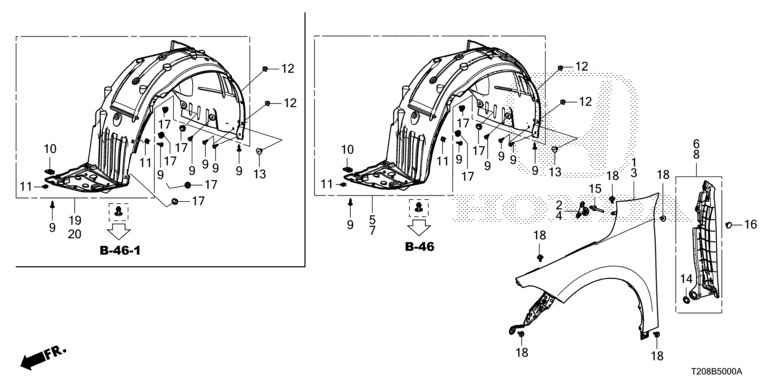

Front Fender
| Ref No | Parts No. | Parts Name |
| 1 | 60210-T20-A00ZZ | FENDER PANEL R. FR. |
| 2 | 60216-T20-A00ZZ | BRACKET, R. FR. FENDER UPPER |
| 3 | 60260-T20-A00ZZ | PANEL L. FR. FENDER |
| 4 | 60266-T20-A00ZZ | BRACKET, L. FR. FENDER UPPER |
| 5 | 74100-T24-T10 | FENDER R. FR. INNER |
| 6 | 74105-T20-A00 | ENCLOSURE, R. FR. FENDER |
| 7 | 74150-T24-T10 | FENDER L. FR. INNER |
| 8 | 74155-T20-A00 | ENCLOSURE, L. FR. FENDER |
| 9 | 90103-TA0-000 | SCREW, TAPPING, 5X20 |
| 10 | 90305-SM4-003 | NUT, CLIP, 6MM |
| 11 | 90331-S3Y-003 | NUT, SPRING, 5MM |
| 12 | 90682-SB0-003 | GROMMET, SCREW, 5MM |
| 13 | 90682-SEA-003 | CLIP, TAPPING SCREW, 5MM |
| 14 | 90825-T2A-003 | GROMMET, 25MM |
| 15 | 90853-SZT-G01 | RIVET, 4.8MM |
| 16 | 91501-TR0-003 | CLIP, INNER FENDER |
| 17 | 91512-SX0-003 | CLIP, INNER FENDER |
| 18 | 93405-06016-08 | BOLT-WASHER, 6X16 |
