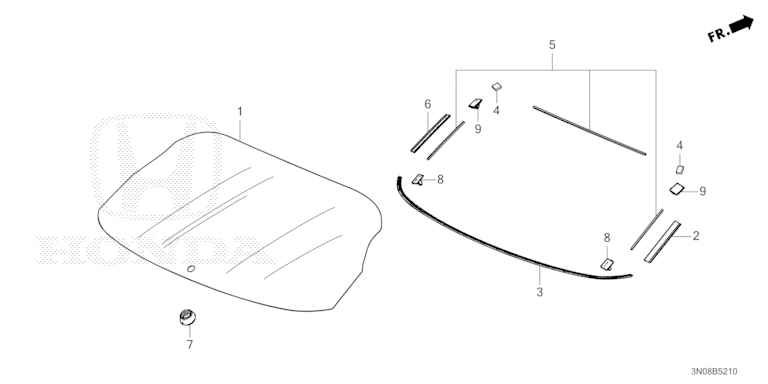

Rear Windshield
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 73211-3N1-K01 | WINDSHIELD GLASS Rear (GREEN) (AGC) | 001 |
| 2 | 73213-3N1-K01 | WINDSHIELD DAM RUBBER, R (A) | 001 |
| 3 | 73215-3N1-K01 | RUBBER, WINDSHIELD DAM (B) | 001 |
| 5 | 73226-SZW-000 | RUBBER, RR. WINDSHIELD DAM (STD.) | 001 |
| 6 | 73263-3N1-K01 | RUBBER, L. WINDSHIELD DAM (A) | 001 |
| 7 | 76711-TLA-A02 | CAP, PIVOT | 001 |
| 8 | 91502-TTA-003 | CLIP, RR. WINDSHIELD LOWER | 002 |
| 9 | 91502-TXA-J01 | CLIP, RR. WINDSHIELD UPPER | 002 |
