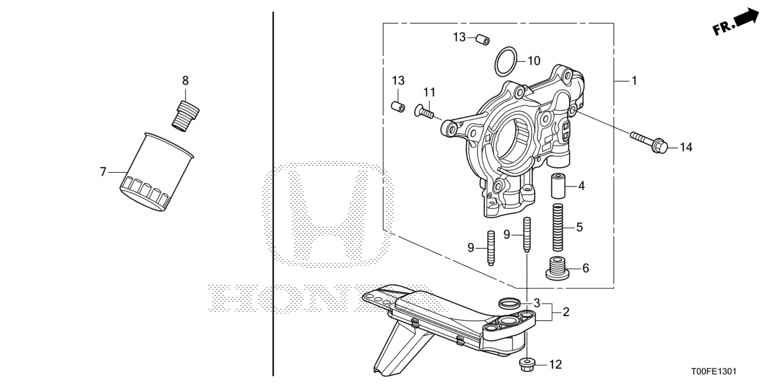

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 15100-5R0-003 | OIL PUMP | 001 |
| 2 | 15220-5R0-005 | STRAINER COMP., OIL | 001 |
| 3 | 15221-5R0-005 | GASKET, OIL STRAINER | 001 |
| 4 | 15231-PFB-003 | VALVE, RELIEF | 001 |
| 5 | 15232-R9G-000 | SPRING, RELIEF VALVE | 001 |
| 6 | 15233-R9G-000 | BOLT, SEALING, 14MM | 001 |
| 7 | 15400-RAF-T01 | CARTRIDGE, OIL FILTER (MAHLE TENNEX) | 001 |
| 8 | 90015-PH1-013 | HOLDER, OIL FILTER | 001 |
| 9 | 90042-5R0-000 | BOLT, STUD, 6X34 | 002 |
| 10 | 91326-PF4-004 | O-RING, 24.4X2.4 (NOK) | 001 |
| 10 | 91326-PWA-W01 | O-RING, 24.4X2.4 | 001 |
| 11 | 93600-06016-0A | SCREW, FLAT, 6X16 | 001 |
| 12 | 94050-06080 | NUT, FLANGE, 6MM | 002 |
| 13 | 94301-08140 | DOWEL PIN, 8X14 | 002 |
| 14 | 95701-06030-08 | BOLT, FLANGE, 6X30 | 006 |
