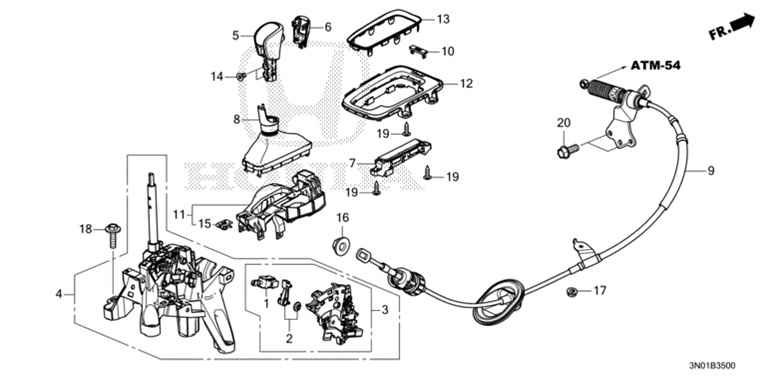

Select Lever
| Ref No | Part Number | Part Description |
| 1 | 39550-TBT-H51 | Solenoid, Shift lock |
| 2 | 54023-TBT-H51 | Stopper Set, Shift Lock |
| 3 | 54028-TBT-H51 | Lock ASSY., Shift |
| 4 | 54100-3M0-J71 | Select Lever Sub ASSY., |
| 5 | 54131-TBT-H61ZA | Knob COMP., Select NH900L Neutral Black |
| 6 | 54133-TBT-H51ZA | Cover, Push Knob NH900L Neutral Black |
| 7 | 54210-3N1-J71 | Illumination ASSY., Select |
| 8 | 54300-3M0-J73ZA | Boot COMP., Select NH900L Neutral Black |
| 9 | 54315-3N0-J51 | Wire, Control |
| 10 | 54711-3M0-J71ZA | Lid, shift lock NH892L mirror black |
| 11 | 54712-3M0-J71 | Release Set, Shift Lock |
| 12 | 54713-3M0-J71ZA | Panel ASSY., Escutcheon NH892L mirror black |
| 13 | 54714-3M0-J71 | Garnish ASSY., Escutcheon |
| 14 | 54903-SYA-981 | Screw, Flat 5X8 |
| 15 | 90306-S0K-A00 | Nut, Clip 5MM |
| 16 | 90351-SB2-003 | Nut, flange 8MM |
| 17 | 90361-SV4-003 | Nut, Paint Coating 6MM |
| 18 | 93404-06025-08 | Bolt-Washer (6X25) |
| 19 | 93913-14420 | Screw, Tapping (4X16) (Po) |
| 20 | 95701-08020-08 | Bolt, Flange (8X20) |
