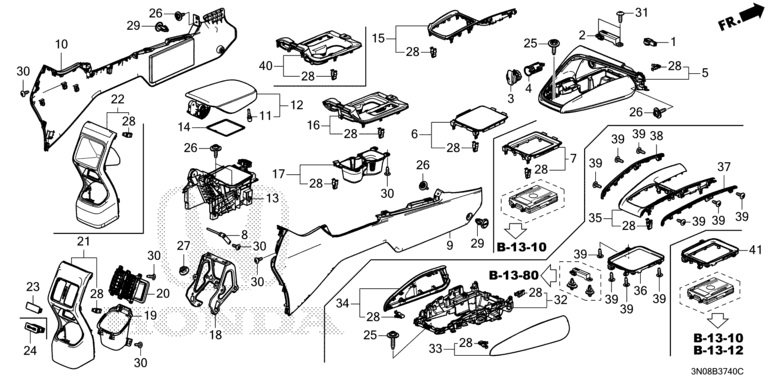

Console
| Ref No. | Parts No. | Parts Name |
| 8 | 83404-3M0-J01 | HINGE, TORQUE |
| 9 | 83406-3N1-T01ZA | CONSOLE COMP. (DRIVER SIDE) *NH900L* (NH900L NEUTRAL BLACK) |
| 10 | 83406-3N1-T11ZA | CONSOLE COMP. (PASSENGER SIDE) *NH900L* (NH900L NEUTRAL BLACK) |
| 11 | 83406-TX6-A01 | STOPPER, CONSOLE ARMREST |
| 12 | 83407-3M0-J21ZA | CONSOLE ARMREST (NH900L NEUTRAL BLACK) |
| 13 | 83411-3M0-J01ZA | CONSOLE BOX (NH900L NEUTRAL BLACK) |
| 14 | 83412-3M0-J01 | CONSOLE BOX MAT |
| 16 | 83431-3M0-J01ZA | PANEL CUP HOLDER (NH900L NEUTRAL BLACK) |
| 17 | 83432-3M0-J01ZA | CUP HOLDER (NH900L NEUTRAL BLACK) |
| 18 | 83445-3M0-J00 | CONSOLE BRACKET RR |
| 19 | 83451-3M0-J01ZA | POCKET REAR (NH900L NEUTRAL BLACK) |
| 20 | 83452-3M0-J01ZA | OUTLET ASSY., RR (NH900L NEUTRAL BLACK) |
| 21 | 83455-3M0-J01ZA | GARNISH ASSY, RR. OUTLET (NH900L NEUTRAL BLACK) |
| 24 | 8A350-3A0-A01 | USB DUAL CHARGER UNIT (ILLUMINATION) |
| 25 | 90133-TBA-000 | BOLT-WASHER, 5X25 |
| 26 | 90140-SH3-003 | BOLT-WASHER, 5X18 |
| 27 | 90301-SP0-003 | NUT, PAINT CUTTING, 6MM |
| 28 | 90666-TDK-003 | CLIP, SNAP FITTING (PO) |
| 29 | 91561-S84-A21ZT | CLIP, RR. PANEL (NH900L NEUTRAL BLACK) |
| 30 | 93913-24220 | SCREW, TAPPING, 4X12 |
| 32 | 83401-3M0-J41 | CONSOLE PAD FR |
| 33 | 83402-3M0-J41ZA | DRIVER PAD (NH900L NEUTRAL BLACK) |
| 34 | 83403-3M0-G41ZA | DRIVER PAD (LH) (NH900L NEUTRAL BLACK) |
| 35 | 83425-3M0-J51ZA | CONSOLE PANEL (NH892L MIRROR BLACK) |
| 37 | 83427-3M0-J51 | CONSOLE MOLDING R. FR |
| 38 | 83428-3M0-J51 | CONSOLE MOLDING L. FR |
| 39 | 93913-24220 | SCREW, TAPPING, 4X12 |
| 41 | 83426-3M0-N31ZA | TRAY ASSY., LOWER (WITH WCU) (NH900L NEUTRAL BLACK) |
