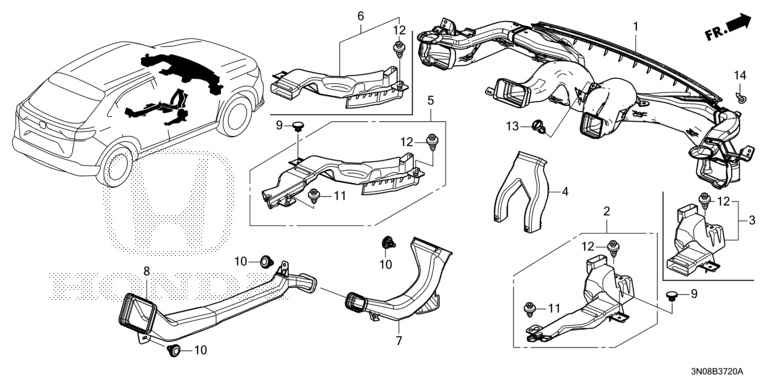

AC Duct
| Ref No. | Parts No. | Parts Name |
| 1 | 77400-3N1-T01 | INSTRUMENT AC DUCT |
| 2 | 83331-3M1-T00 | HEATER R. REAR |
| 4 | 83332-3M0-000 | HEATER DUCT JOINT, REAR |
| 5 | 83381-3M1-T00 | HEATER DUCT L. REAR |
| 7 | 83460-3N1-T01 | CONSOLE JOINT DUCT FRONT |
| 8 | 83465-3N1-T01 | CONSOLE JOINT DUCT REAR |
| 9 | 91501-TR0-003 | INNER FENDER CLIP |
| 10 | 91550-SFJ-W01ZE | CLIP, CENTER LOWER (NH900L NEUTRAL BLACK) |
| 11 | 91560-TG1-T01 | CLIP, GARNISH (APPLE GREEN) (SEAL) |
| 12 | 91560-TX4-A01 | CLIP, GARNISH (LIGHT YELLOW) (SEAL) |
| 13 | 91561-S84-A21ZT | CLIP, RR. PANEL (NH900L NEUTRAL BLACK) |
| 14 | 93913-14420 | SCREW, TAPPING, 4X16 (PO) |
