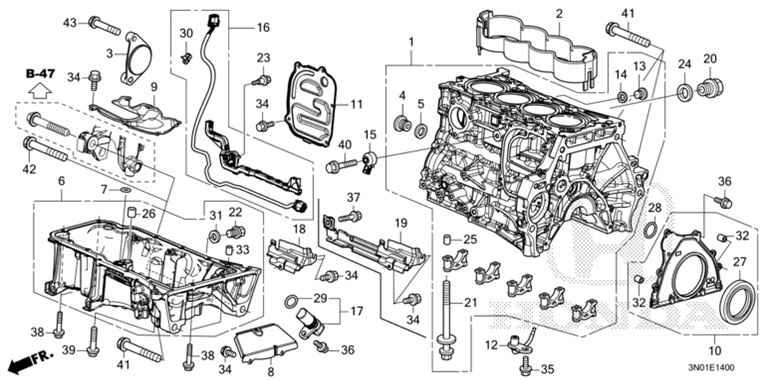

Cylinder Block and Oil Pan
| Ref No | Part Number | Part Description |
| 1 | 11000-6HN-800 | Block Assy., Cylinder LEC |
| 2 | 11104-5R0-000 | Spacer Assembly, Cooling Control |
| 3 | 11105-6Y0-000 | Cover, Block |
| 4 | 11106-PWA-300 | Bolt, Sealing 24MM |
| 5 | 11107-PWA-300 | Washer, Sealing 24MM |
| 6 | 11200-6Y0-000 | Pan ASSY., Oil |
| 7 | 11203-PWA-003 | O-ring 17.8X2.4 NOK |
| 8 | 11205-6Y0-003 | Cover COMP., oil pan |
| 9 | 11221-5R0-010 | Plate, Baffle |
| 10 | 11300-5R0-J00 | Case COMP., Oil Seal |
| 11 | 11850-5R0-000 | Cover, Breather |
| 12 | 15280-6Y0-009 | Body COMP., Oil Jet |
| 13 | 15301-PE0-300 | Bolt, sealing 14mm |
| 14 | 15302-PE0-300 | Washer, Sealing 14MM |
| 15 | 30530-R1A-A01 | Sensor, Nozzle |
| 16 | 32113-6Y0-000 | Sub-Harness, Crank Sensor |
| 17 | 37500-59B-J01 | Sensor ASSY., crank |
| 18 | 37501-5R0-000 | Cover, Crank Sensor |
| 20 | 90001-PM3-003 | Bolt, Drain Plug 28MM |
| 21 | 90008-5R0-003 | Bolt Washer 10X75.5 |
| 22 | 90009-R70-A00 | Bolt, Plug 14MM |
| 23 | 90051-RGA-003 | Bolt, Special 6X20.8 |
| 24 | 90401-PR4-000 | Washer, Sealing 28MM |
| 25 | 90702-PE0-000 | Knock Pin 12X18 |
| 26 | 90705-PT0-000 | Knock pin 16X22 |
| 27 | 91214-5R0-J01 | Seal, Low Torque Oil 80X94X8 NOK |
| 28 | 91308-5R0-003 | O-ring 35.2X2.4 |
| 29 | 91333-PNC-006 | O-Ring |
| 30 | 91506-RTA-003 | Clip A, Harness Band Dark Violet) (129.4MM |
| 31 | 94109-14000 | Washer, Drain Plug (14Mm) |
| 32 | 94301-06100 | Pin A, Dowel (6X10) |
| 33 | 94301-12200 | Pin A, Dowel (12X20) |
| 34 | 95701-06012-08 | Bolt, Flange (6X12) |
| 35 | 95701-06014-08 | Bolt, Flange (6X14) |
| 36 | 95701-06016-08 | Bolt, Flange (6X16) |
| 38 | 95701-06025-08 | Bolt, Flange (6X25) |
| 39 | 95701-08030-08 | Bolt, Flange (8X30) |
| 40 | 95701-08032-08 | Bolt, Flange (8X32) |
| 41 | 95701-12060-08 | Bolt, Flange 12X60 |
| 43 | 95801-10040-08 | Bolt, Flange (10X40) |
