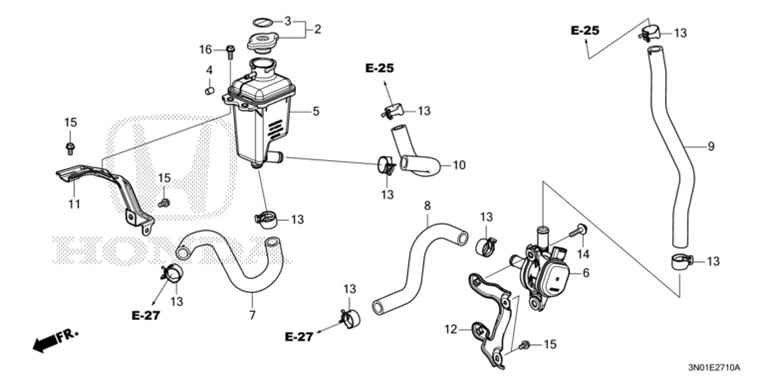

Electric Water Pump
| Ref No | Part Number | Part Description |
| 2 | 1J045-5RD-004 | Cap COMP T.RAD |
| 3 | 1J046-5K0-000 | Label, Radiator Cap |
| 4 | 1J108-6Y0-003 | Cap, Overflow |
| 5 | 1J110-6Y0-003 | Tank assembly, Expansion |
| 6 | 1J200-5K1-A01 | Pump ASSY., Electric water |
| 7 | 1J401-6HN-000 | Hose, Radiator Inlet |
| 8 | 1J402-6HN-000 | Hose, radiator outlet |
| 9 | 1J403-6HN-000 | Hose, PCU Inlet |
| 10 | 1J404-6HN-000 | Hose, PCU outlet |
| 11 | 1J910-6HN-000 | Bracket assembly, Expansion Tank |
| 12 | 1J920-6HN-000 | Bracket COMP., Electric Water Pump |
| 13 | 91405-TK8-A01 | Clip, Water Hose 24MM |
| 14 | 93405-06028-05 | Bolt washer 6X28 |
| 15 | 95701-06012-08 | Bolt, Flange (6X12) |
| 16 | 95701-06016-08 | Bolt, Flange (6X16) |
