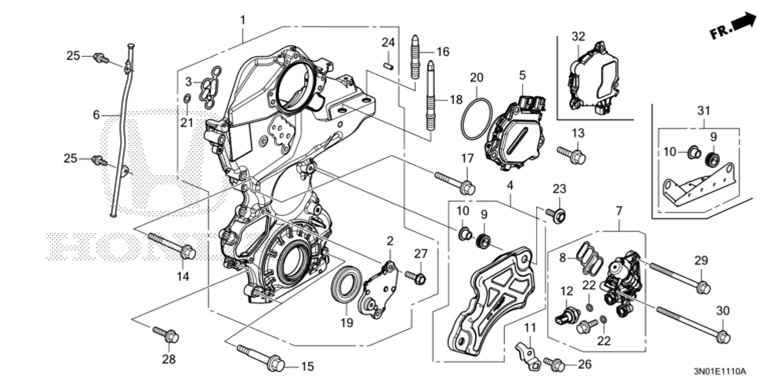

Chain Case
| Ref No | Part Number | Part Description |
| 1 | 11410-62W-000 | Case ASSY., chain |
| 2 | 11412-6Y0-000 | Cover, chain case |
| 3 | 11413-5R0-003 | O-Ring, Chain Case |
| 6 | 15200-5R0-000 | Pipe COMP., Oil level |
| 7 | 15810-62W-T01 | Valve ASSY., spool |
| 8 | 15815-5R0-003 | Filter ASSY., spool valve |
| 9 | 17115-PWA-000 | Rubber, Engine Cover Mounting |
| 10 | 17116-PWA-000 | Collar, Engine Cover |
| 11 | 32747-5R0-900 | Stay, Engine Wire Harness Chain Case Lower |
| 12 | 37260-RNA-A01 | Sensor, Oil Pressure |
| 13 | 90005-6Y0-000 | Bolt, flange 8X25 |
| 14 | 90015-PF0-000 | Bolt, Flange 8X53 |
| 15 | 90021-PWA-003 | Bolt, Special 8X41 |
| 16 | 90041-6Y0-000 | Bolt, Stud 14X65 |
| 17 | 90107-P4V-000 | Bolt, flange 8X40 |
| 18 | 90380-6Y0-000 | Bolt, Stud 14X117 |
| 19 | 91212-5K9-003 | Oil seal 40X55X7 NOK |
| 20 | 91306-5K0-A01 | O-Ring 92.4X2.8 |
| 21 | 91309-5R0-003 | O-Ring 15X2.5 NOK |
| 22 | 91319-PAA-A01 | O-ring 13X1.5 |
| 23 | 93404-06020-08 | Bolt-Washer (6X20) |
| 24 | 94302-04065 | Pin, Dowel (4X65) (Not Available) |
| 25 | 95701-06012-08 | Bolt, Flange (6X12) |
| 26 | 95701-06014-08 | Bolt, Flange (6X14) |
| 27 | 95701-06020-08 | Bolt, Flange (6X20) |
| 28 | 95701-06020-08 | Bolt, Flange (6X20) |
| 29 | 95701-06055-07 | Bolt, Flange (6X55) |
| 30 | 95701-06075-07 | Bolt, Flange 6X75 |
| 31 | 11430-62W-000 | Cover ASSY., electric VTC |
| 32 | 14320-6MA-J01 | Motor ASSY., Electric VTC |
