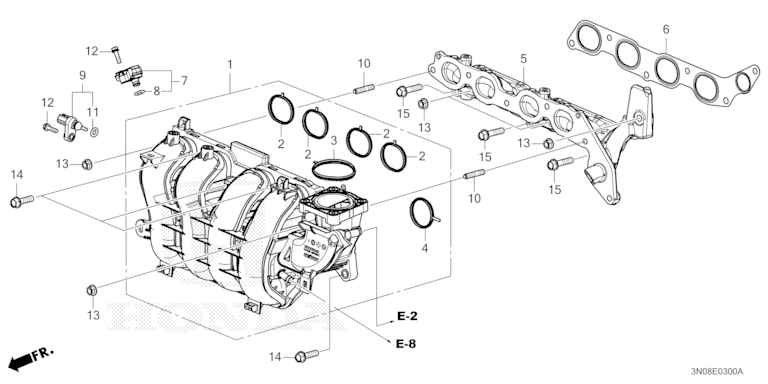

Intake Manifold
| Ref No. | Parts No. | Parts Name |
| 1 | 17100-6Y0-004 | INTAKE MANIFOLD |
| 2 | 17105-55A-Z01 | PACKING, INTAKE PORT |
| 3 | 17107-6Y0-004 | THROTTLE BODY PACKING |
| 4 | 17116-5Y3-J01 | EGR PORT PACKING |
| 5 | 17145-6Y0-000 | PLATE, EGR |
| 6 | 17146-6Y0-004 | GASKET, EGR PLATE |
| 7 | 37830-6Y0-J01 | SENSOR ASSY., MAP |
| 8 | 37835-PGK-A01 | O-RING |
| 9 | 37880-RWC-A01 | AIR TEMPERATURE SENSOR |
| 10 | 90025-RGA-000 | BOLT, STUD, 8X28 |
| 11 | 91303-RWC-A01 | O-RING, 6.8X3.1 |
| 12 | 93403-05020-08 | BOLT-WASHER, 5X20 |
| 13 | 94050-08080 | NUT, FLANGE, 8MM |
| 14 | 95701-08030-08 | BOLT, FLANGE, 8X30 |
| 15 | 95701-08035-08 | BOLT, FLANGE, 8X35 |
