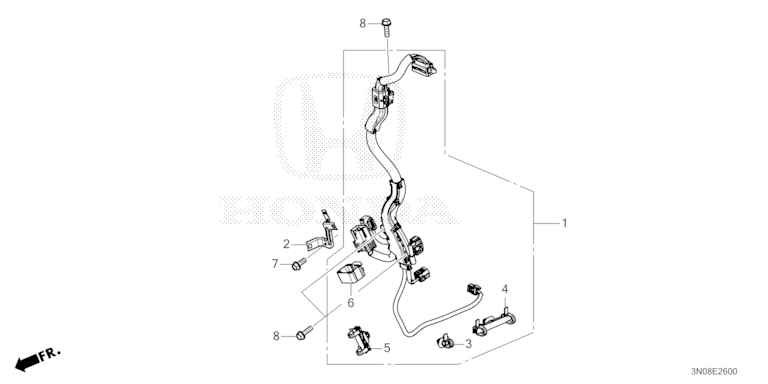

Motor Sensor Wiring
| Ref No. | Parts No. | Parts Name |
| 1 | 1N410-6Y0-000 | HARNESS, MOTOR SENSOR WIRE |
| 2 | 1N450-6Y0-000 | STAY, TRANSMISSION CASE FR. |
| 3 | 91542-SNA-003 | CLIP, HARNESS BAND (DARK BLUE) (164.5MM) |
| 4 | 91547-T2A-003 | CLIP, BAND HARNESS (40) (BLACK) (164.5MM) |
| 5 | 91548-T2A-003 | CLIP, BAND HARNESS (18) (BLACK) (101.5MM) |
| 6 | 91555-S3V-A01 | HOLDER, COUPLER |
| 7 | 95701-06016-08 | BOLT, FLANGE, 6X16 |
| 8 | 95701-06020-08 | BOLT, FLANGE, 6X20 |
