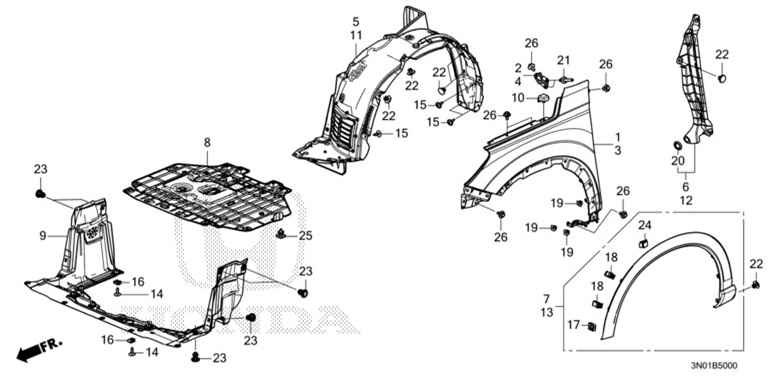

Front Fender
| Ref No | Part Number | Part Description |
| 1 | 60210-3M0-000ZZ | Panel Right front fender |
| 2 | 60216-3M0-300ZZ | Bracket, R. Front fender upper |
| 3 | 60260-3M0-000ZZ | Panel Left Front Fender |
| 4 | 60266-3M0-300ZZ | Bracket, L. Front fender upper |
| 5 | 74100-3N0-000 | Fender Assembly, R. Front Inner |
| 6 | 74105-3N0-000 | Enclosure, R. Front Fender |
| 7 | 74107-3M0-J11 | Protector, Right Front Wheel Arch |
| 8 | 74114-3N0-000 | Lid Engine Shield Undercover |
| 9 | 74115-3M0-000 | Guard, Front Splash |
| 10 | 74146-3M0-000 | Hood Cushion |
| 11 | 74150-3N0-000 | Fender Assembly, L. Front Inner |
| 12 | 74155-3N0-000 | Enclosure, L. Front Fender |
| 13 | 74157-3M0-J11 | Protector, Left Front Wheel Arch |
| 14 | 90114-SE0-000 | Screw, Tapping 5X20 |
| 15 | 90114-SZ3-000 | Screw washer 5X20 |
| 16 | 90308-SB2-013 | Nut, Suspension (5Mm) |
| 17 | 90331-SD5-003 | Nut, Spring 5MM |
| 18 | 90601-SMG-003 | Clip, Snap Fastening |
| 19 | 90682-SB0-003 | Grommet, Screw 5MM |
| 20 | 90825-T2A-003 | Grommet 25MM |
| 21 | 90853-SZT-G01 | Rivet 4.8MM |
| 22 | 91501-TR0-003 | Clip, Inner Fender |
| 23 | 91505-TM8-003 | Clip, Bumper |
| 24 | 91513-T0A-A11 | Clip, arch protector |
| 25 | 91514-TG1-T01 | Clip, Undercover |
| 26 | 93405-06016-08 | Bolt-Washer (6X16) |
