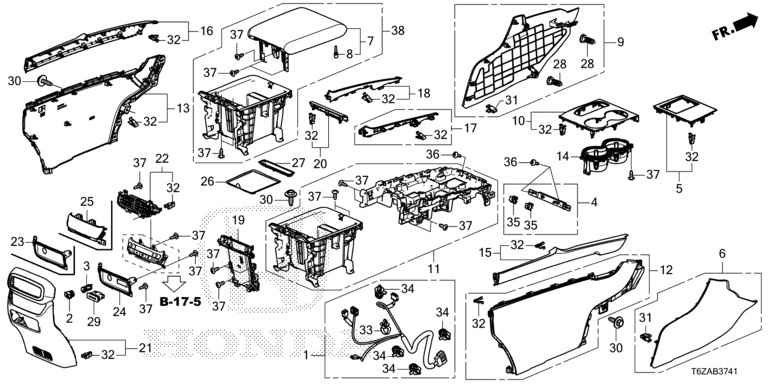

Center Console
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 32118-T6Z-A10 | SUB CORD, FR. CONSOLE | 001 |
| 2 | 39620-T20-Z01 | CAP ASSY. | 001 |
| 3 | 39624-T5A-J01 | SOCKET ASSY. | 001 |
| 4 | 77104-T6Z-A00 | BRACKET ASSY., INSTRUMENT PANEL MIDDLE | 001 |
| 5 | 77297-T6Z-A11ZA | MAT, CONSOLE POCKET *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 6 | 83404-TG7-A01ZA | PANEL ASSY., PASSENGER CONSOLE *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 7 | 83405-T6Z-A03ZA | ARMREST ASSY. *YR666L* (YR666L THREAD TRAIL ORANGE) | 001 |
| 8 | 83406-TX6-A01 | STOPPER, CONSOLE ARMREST | 002 |
| 9 | 83409-TG7-A01ZA | PANEL ASSY., DRIVER CONSOLE *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 10 | 83411-T6Z-A02ZB | PANEL, CONSOLE TOP *NH1072L* (NH1072L DARK GUNMETAL) | 001 |
| 11 | 83411-T6Z-Z02ZA | CONSOLE ASSY. *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 12 | 83412-T6Z-A02ZA | PANEL, CONSOLE PASSENGER *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 13 | 83413-T6Z-A02ZA | PANEL, CONSOLE DRIVER *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 14 | 83415-T6Z-A22ZA | HOLDER ASSY., CUP *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 15 | 83414-T6Z-A03ZA | GARNISH, CONSOLE OUTER PASSENGER *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 16 | 83416-T6Z-A03ZA | GARNISH, CONSOLE OUTER DRIVER *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 17 | 83417-T6Z-A02ZA | GARNISH, CONSOLE INNER PASSENGER *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 18 | 83418-T6Z-A02ZA | GARNISH, CONSOLE INNER DRIVER *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 19 | 83419-T90-A02 | DUCT ASSY. | 001 |
| 20 | 83430-T6Z-A02ZA | COVER ASSY., CONSOLE TOP *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 21 | 83451-T90-A03ZA | PANEL, RR. CONSOLE *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 22 | 83452-T90-A05ZA | OUTLET ASSY., RR. CONSOLE *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 23 | 83454-T6Z-A01ZA | COVER, RR. CONSOLE *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 25 | 83456-T90-A02ZA | COVER, HEATER CONTROL *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 26 | 83470-T90-A01 | MAT, CONSOLE BOX | 001 |
| 27 | 83472-T90-A01 | MAT, COIN HOLDER | 001 |
| 28 | 83499-TZ5-A02 | CLIP, BEAM | 002 |
| 30 | 90120-TK8-A01 | BOLT, 6X20 | 004 |
| 31 | 90666-SDA-A01 | CLIP, SNAP FITTING (PO) (NATURAL) | 012 |
| 32 | 90666-TDK-003 | CLIP, SNAP FITTING (PO) | 071 |
| 33 | 91540-STK-003 | CLIP, HARNESS BAND (BLACK) (155.3MM) | 001 |
| 34 | 91540-TA0-003 | CLIP, HARNESS BAND (NATURAL) (100.1MM) | 004 |
| 35 | 91640-SM4-003 | GROMMET, SCREW, 4MM | 002 |
| 36 | 93913-14420 | SCREW, TAPPING, 4X16 (PO) | 004 |
| 37 | 93913-24220 | SCREW, TAPPING, 4X12 | N |
| 38 | 83427-T6Z-A01ZA | BOX ASSY., CONSOLE *YR666L* (YR666L THREAD TRAIL ORANGE) | 001 |
