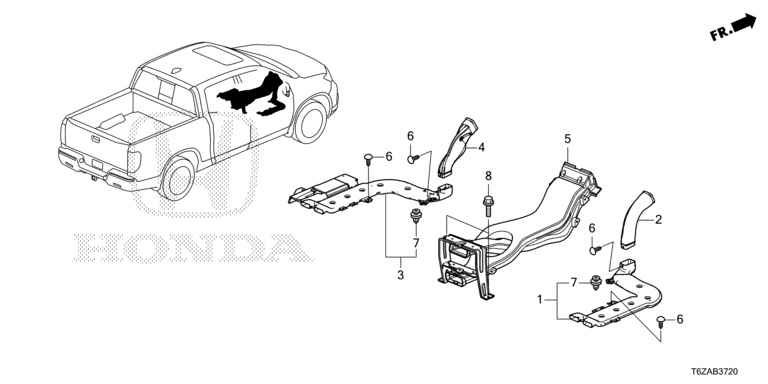

AC Heater Duct
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 83331-TZ5-A00 | DUCT ASSY., R. RR. HEATER | 001 |
| 2 | 83332-TZ5-A00 | DUCT, R. RR. HEATER JOINT | 001 |
| 3 | 83381-TZ5-A00 | DUCT ASSY., L. RR. HEATER | 001 |
| 4 | 83382-TG7-A00 | DUCT, L. RR. HEATER JOINT | 001 |
| 5 | 83425-T6Z-A22 | DUCT COMP., CONSOLE | 001 |
| 6 | 90671-S0D-003YU | CLIP, ROOF, 7MM *NH900L* (NH900L NEUTRAL BLACK) | 004 |
| 7 | 91560-TG1-T01 | CLIP, GARNISH (APPLE GREEN) (SEAL) | 002 |
| 8 | 95701-08020-08 | BOLT, FLANGE, 8X20 | 002 |
