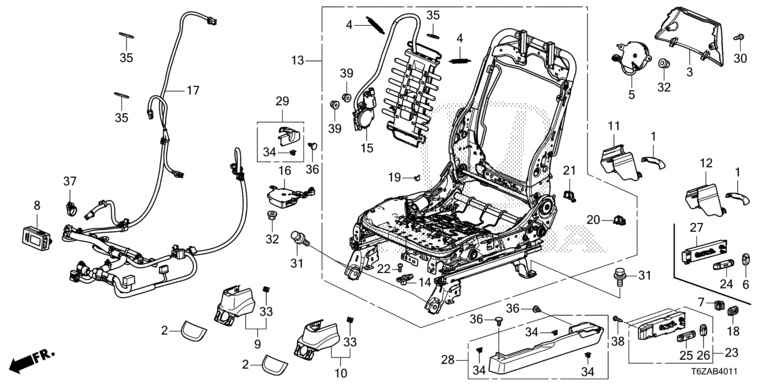

Front Seat Parts Left

81650-TZ3-A12ZE Switch

Ref No. Parts No. Parts Name Unit Qty
1 81102-TG7-A01ZA CAP, FR. SEAT RR. FOOT COVER *NH900L* (NH900L NEUTRAL BLACK) 002
2 81108-TG7-A01ZA CAP, FR. SEAT FR. FOOT COVER *NH900L* (NH900L NEUTRAL BLACK) 002
4 81198-TE0-A41 SPRING, FR. SEATBACK LUMBAR 002
7 81255-SZ3-A01 SWITCH ASSY., LUMBAR SUPPORT 001
8 81289-TG7-A02 HCS UNIT 001
9 81504-TG7-A31ZA COVER, L. FR. SEAT FR. INNER FOOT *NH900L* (NH900L NEUTRAL BLACK) 001
10 81505-TG7-A31ZA COVER, L. FR. SEAT FR. OUTER FOOT *NH900L* (NH900L NEUTRAL BLACK) 001
11 81506-TG7-A31ZA COVER, L. FR. SEAT RR. INNER FOOT *NH900L* (NH900L NEUTRAL BLACK) 001
12 81507-TG7-A31ZA COVER, L. FR. SEAT RR. OUTER FOOT *NH900L* (NH900L NEUTRAL BLACK) 001
13 81526-TG7-A41 FRAME COMP., L. FR. SEAT 001
14 81550-T2F-A31 SENSOR, SEAT POSITION 001
15 81590-TG7-A11 LUMBAR COMP., L. FR. SEATBACK 001
17 81606-TG7-L41 CORD, L. POWER SEAT (8-WAY) 001
18 81611-S3V-A01YP KNOB, L. *NH900L* (NH900L NEUTRAL BLACK) 001
19 81612-TZ3-A11 CAP, LIFT LINK RR. 001
20 81613-T6L-H61 COVER, L. TRACK END UPPER 001
21 81614-T6L-H61 COVER, R. TRACK END UPPER 001
22 81621-T2F-A31 SCREW (M6) 001
23 81650-TZ3-A12ZE SWITCH ASSY., L. POWER SEAT *NH900L* (NH900L NEUTRAL BLACK) 001
25 81651-T2F-A51ZJ KNOB, SLIDE *NH900L* (NH900L NEUTRAL BLACK) 001
26 81652-T2F-A51ZJ KNOB, RECLINING *NH900L* (NH900L NEUTRAL BLACK) 001
28 81669-TZ3-A11ZC COVER, L. UPPER RAIL OUTER *NH900L* (NH900L NEUTRAL BLACK) 001
29 81679-TZ5-A01ZF COVER, L. UPPER RAIL INNER *NH900L* (NH900L NEUTRAL BLACK) 001
31 90135-S7A-J51 BOLT-WASHER, 10X25 004
33 90610-S10-003 CLIP, GARNISH 002
34 90610-SDA-003 CLIP, GARNISH 004
35 90650-KV3-000 BAND, WIRE 001
36 91504-SR2-000YV CLIP, RR. ROOF RAIL *NH900L* (NH900L NEUTRAL BLACK) 003
37 91540-TA0-003 CLIP, HARNESS BAND (NATURAL) (100.1MM) 001
38 93903-14220 SCREW, TAPPING, 4X10 002
39 94050-06080 NUT, FLANGE, 6MM 002
