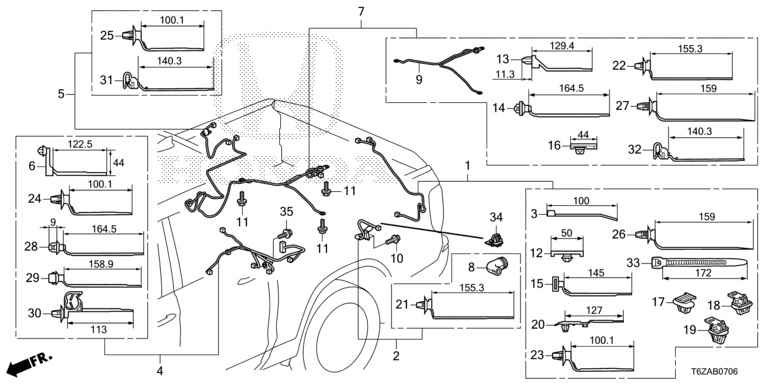

Wire Harness
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 32109-T6Z-A20 | HARNESS, TAILGATE WIRE | 001 |
| 2 | 32113-T6Z-A00 | SUB CORD, TRAILER | 001 |
| 3 | 32113-TA0-003 | BAND, CABLE (BLACK) (100MM) | 001 |
| 4 | 32114-TG7-A00 | HARNESS, RR. SUB FRAME WIRE | 001 |
| 6 | 32133-SM4-003 | BAND, HARNESS OFFSET (30) (YELLOW) (122.5MM) | 001 |
| 7 | 32202-T6Z-A00 | HARNESS, TRUNK WIRE (SUB) | 001 |
| 8 | 32461-SJC-A01 | PROTECTOR, WIRE HARNESS (7P) (BLACK) | 001 |
| 9 | 74840-T6Z-A00 | CABLE COMP., CARGO LID ANCHOR | 001 |
| 10 | 90001-RLJ-000 | BOLT, FLANGE, 6X18 | 002 |
| 11 | 90124-S3Y-003 | BOLT, SHOULDER, 6X20 (3.5) | 003 |
| 12 | 90627-SA5-003 | CLIP, WIRE HARNESS (BLUE) (HARNESS TAPING) (50MM) | 002 |
| 13 | 91507-P01-003 | CLIP B, HARNESS BAND (DARK BROWN) (129.4MM) | 001 |
| 14 | 91507-TG7-A01 | CLIP, HARNESS BAND (BROWN) (164.5MM) (SEAL) | 001 |
| 15 | 91531-SDA-003 | CLIP, HARNESS BAND (NATURAL) (145MM) | 001 |
| 16 | 91531-T4N-003 | CLIP, WIRE HARNESS (BLACK) (44MM) | 001 |
| 17 | 91533-SDA-003 | CLIP, COUPLER (BEIGE) | 001 |
| 18 | 91535-STK-003 | CLIP, COUPLER (DARK BLUE) | 002 |
| 19 | 91535-TA0-003 | CLIP, COUPLER (DARK BROWN) | 001 |
| 20 | 91537-SR3-003 | CLIP, WIRE HARNESS (BROWN) (127MM) | 001 |
| 21 | 91540-STK-003 | CLIP, HARNESS BAND (BLACK) (155.3MM) | 001 |
| 22 | 91540-STK-003 | CLIP, HARNESS BAND (BLACK) (155.3MM) | 006 |
| 23 | 91540-TA0-003 | CLIP, HARNESS BAND (NATURAL) (100.1MM) | 002 |
| 24 | 91540-TA0-003 | CLIP, HARNESS BAND (NATURAL) (100.1MM) | 002 |
| 26 | 91540-TAA-003 | CLIP, HARNESS BAND (BLACK) (159MM) | 002 |
| 27 | 91540-TAA-003 | CLIP, HARNESS BAND (BLACK) (159MM) | 003 |
| 28 | 91542-SNA-003 | CLIP, HARNESS BAND (DARK BLUE) (164.5MM) | 003 |
| 29 | 91542-SWY-003 | CLIP, HARNESS BAND (BLACK) (158.9MM) | 001 |
| 30 | 91549-STK-003 | HOLDER, HARNESS (NATURAL) (113MM) | 002 |
| 32 | 91549-TA0-003 | CLIP, HARNESS BAND (BLACK) (140.3MM) | 006 |
| 33 | 91551-PNA-003 | BAND, WIRE HARNESS (BLACK) (172MM) | 001 |
| 34 | 91565-SEL-003 | CLIP, COUPLER (BLACK) | 001 |
| 35 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 001 |
