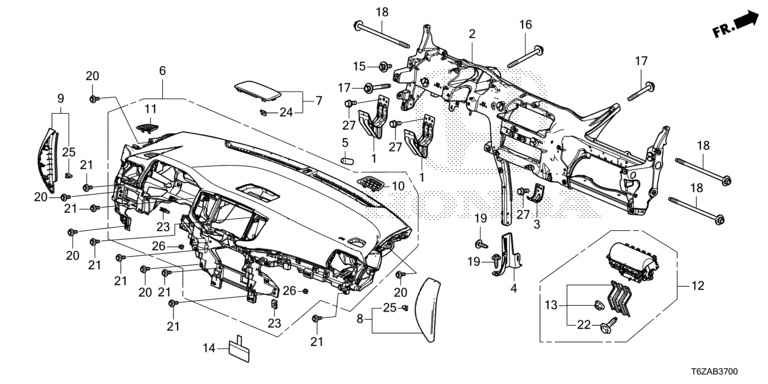

Instrument Panal
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 61170-TG7-A00 | BOLSTER COMP., R. DRIVER KNEE | 002 |
| 2 | 61300-TG7-A00 | FRAME ASSY., INSTRUMENT PANEL | 001 |
| 3 | 61331-TG7-A00 | BOLSTER, PASSENGER KNEE | 001 |
| 4 | 61333-TZ5-A01 | BRACKET, JOINT CENTER LOWER | 001 |
| 5 | 66844-SA7-000 | CAP, INSTRUMENT PANEL STAY | 003 |
| 6 | 77100-TG7-A02ZA | PANEL ASSY., INSTRUMENT *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 8 | 77211-TG7-A00ZA | LID, R. INSTRUMENT SIDE *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 9 | 77216-TG7-A00ZA | LID, L. INSTRUMENT SIDE *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 10 | 77470-TG7-A01ZA | GARNISH, PASSENGER SIDE DEFROSTER *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 11 | 77475-TG7-A01ZA | GARNISH, DRIVER SIDE DEFROSTER *NH900L* (NH900L NEUTRAL BLACK) | 001 |
| 12 | 77820-TG7-A81 | PASSENGER SRS MODULE | 001 |
| 13 | 77892-TG7-A00 | BRACKET SET, SUPPORT | 001 |
| 14 | 78527-TLA-A10 | TAG, PASSENGER SRS CAUTION | 001 |
| 15 | 90104-SV4-000 | BOLT-WASHER, 8X25 | 001 |
| 16 | 90121-TZ5-A01 | BOLT-WASHER, 8X96.5 | 001 |
| 17 | 90122-TZ5-A01 | BOLT-WASHER, 8X68 | 002 |
| 18 | 90124-THR-A01 | BOLT-WASHER, 8X156 | 003 |
| 19 | 90129-SL0-000 | BOLT-WASHER, 8X25 (WITH GUIDE) | 004 |
| 20 | 90140-TG7-A00 | BOLT, SHOULDER, 7X16 (MAG-FORM) (OS) | (5) |
| 20 | 90141-TZ5-A00 | BOLT, SHOULDER, 6X16 (MAG-FORM) | 005 |
| 21 | 90140-TZ5-A00 | BOLT, SHOULDER, 5X16 (MAG-FORM) | 008 |
| 22 | 90178-TZ5-003 | BOLT-WASHER, 6X25 (AIRBAG) | 003 |
| 23 | 90302-SA4-003 | NUT, SPRING, 4MM | 002 |
| 25 | 90666-SDA-A01 | CLIP, SNAP FITTING (PO) (NATURAL) | 006 |
| 26 | 91640-SM4-003 | GROMMET, SCREW, 4MM | 015 |
| 27 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 006 |
