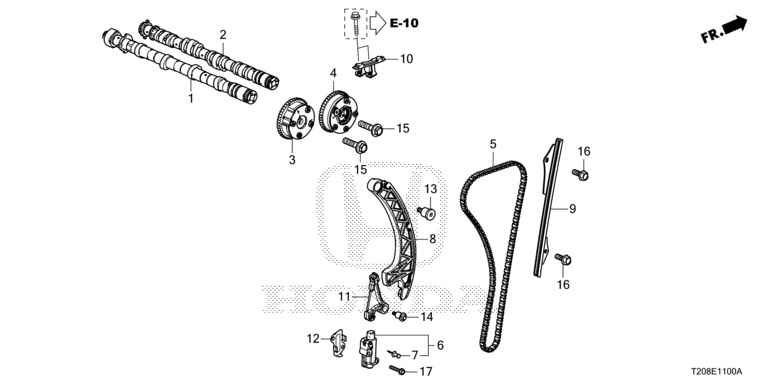

Camshaft Cam Chain
| Ref No | Parts No. | Parts Name |
| 1 | 14110-64D-N00 | Intake Camshaft |
| 2 | 14120-6A4-Z00 | Exhaust Camshaft |
| 3 | 14310-6A0-A01 | VTC IN ACTUATOR (46T) |
| 4 | 14320-6A0-A01 | VTC EX ACTUATOR (46T) |
| 5 | 14401-6A0-A01 | CHAIN (166L) |
| 6 | 14510-6A0-A01 | Cam Chain Auto-Tensioner |
| 7 | 14511-PNA-003 | STOPPER (TOOL) |
| 8 | 14520-6A0-A01 | Cam Chain Tensioner Arm |
| 9 | 14530-6A0-A01 | CAM CHAIN GUIDE |
| 10 | 14540-59B-003 | CAM CHAIN GUIDE, B |
| 11 | 14550-59B-000 | CAM CHAIN TENSIONER ARM |
| 12 | 14560-5A2-A00 | CHAIN TENSIONER FILTER |
| 13 | 90003-PNA-000 | BOLT, TENSIONER PIVOT |
| 14 | 90004-RNA-A00 | BOLT, CHAIN GUIDE |
| 15 | 90032-PNA-000 | BOLT, FLANGE, 12X47 |
| 16 | 95701-06016-08 | BOLT, FLANGE, 6X16 |
| 17 | 95701-06032-08 | BOLT, FLANGE, 6X32 |
