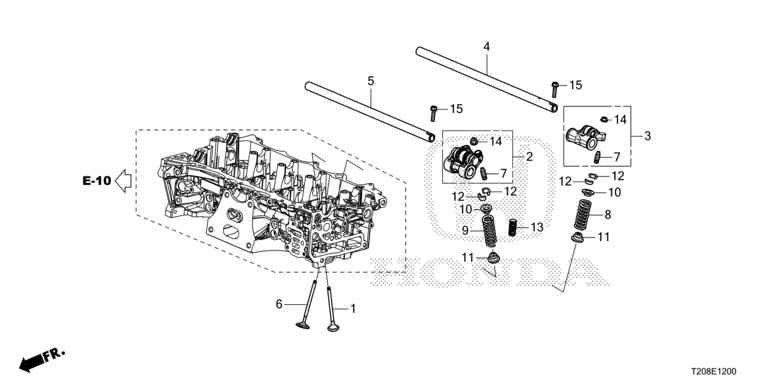

Valve Rocker Arm
| Ref No | Parts No. | Parts Name |
| 1 | 06147-59B-U00 | Exhaust Valve |
| 2 | 14620-6A0-A00 | ARM ASSY., ROCKER (VTEC) |
| 3 | 14625-59B-000 | Intake Rocker Arm |
| 4 | 14631-59B-000 | Intake Rocker Shaft |
| 5 | 14632-6A0-A00 | Exhaust Rocker Shaft |
| 6 | 14711-6A0-A00 | Intake Valve |
| 7 | 14744-PNA-004 | SCREW, TAPPET ADJUSTING |
| 8 | 14761-59B-003 | Intake Valve Spring |
| 9 | 14762-6A0-A01 | Exhaust Valve Spring |
| 10 | 14765-RGA-000 | VALVE SPRING RETAINER |
| 11 | 14775-P08-000 | VALVE SPRING SEAT |
| 12 | 14781-RGM-A01 | VALVE COTTER (FUJI VALVE) |
| 13 | 14820-6A0-A01 | LOST MOTION |
| 14 | 90206-PM3-004 | NUT, TAPPET ADJUSTING (TOKAI TRW) |
| 14 | 90206-R1B-A01 | NUT, TAPPET ADJUSTING (FUSE RASHI) |
| 15 | 95701-06025-08 | BOLT, FLANGE, 6X25 |
