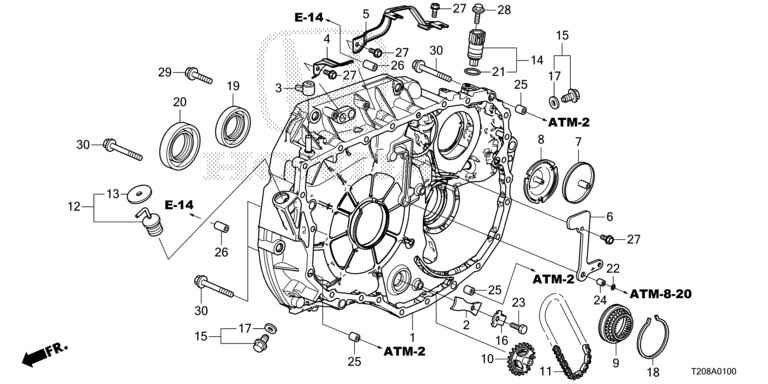

Torque Converter Cover
| Ref No | Parts No. | Parts Name |
| 1 | 21110-5CG-000 | TORQUE CONVERTER CASE |
| 2 | 21318-5LJ-000 | BEARING SETTING PLATE |
| 3 | 21396-P20-000 | BREATHER CAP |
| 4 | 21512-59C-000 | STAY B, HARNESS |
| 5 | 21513-59C-000 | STAY COMP. C, HARNESS |
| 6 | 21700-5LJ-000 | LUBRICATION PLATE |
| 7 | 23224-5LJ-000 | OIL GUIDE PLATE (SECONDARY) |
| 8 | 23225-5LJ-000 | PLATE, OIL GUIDE (DRIVEN) |
| 9 | 25161-5LJ-305 | OIL PUMP DRIVE SPROCKET |
| 10 | 25162-5LJ-305 | OIL PUMP DRIVEN SPROCKET |
| 11 | 25165-RFH-003 | CHAIN, OIL PUMP DRIVE |
| 12 | 25615-5C4-024 | CAP, ATF FILLER (A) (CVT) |
| 13 | 25619-RJ2-014 | TAG |
| 14 | 28810-5RG-004 | CVT Speed Sensor |
| 15 | 90030-RT4-003 | SEALING BOLT 10MM |
| 16 | 90433-639-000 | WASHER, LOCK, 6MM |
| 17 | 90471-59C-000 | PACKING, 10MM (AL-PACKING) |
| 18 | 90601-5LJ-000 | CIRCLIP, EXTERNAL, 79.5MM |
| 19 | 91206-RCT-003 | Right Differential Seal 35X58X8 NOK |
| 20 | 91207-5LJ-003 | Input Shaft Oil Seal 50X76X6.5 NOK |
| 21 | 91301-5DJ-003 | O-RING |
| 22 | 91311-PA9-004 | O-RING, 7.7X1.9 (NOK) |
| 23 | 92101-06016-0G | BOLT, HEX., 6X16 |
| 24 | 94301-08140 | DOWEL PIN, 8X14 |
| 25 | 94301-12160 | PIN A, DOWEL, 12X16 |
| 26 | 94301-14200 | DOWEL PIN, 14X20 |
| 27 | 95701-06014-08 | BOLT, FLANGE, 6X14 |
| 28 | 95701-06020-08 | BOLT, FLANGE, 6X20 |
| 29 | 95701-08035-07 | BOLT, FLANGE, 8X35 |
| 30 | 95701-08050-08 | BOLT, FLANGE, 8X50 |
