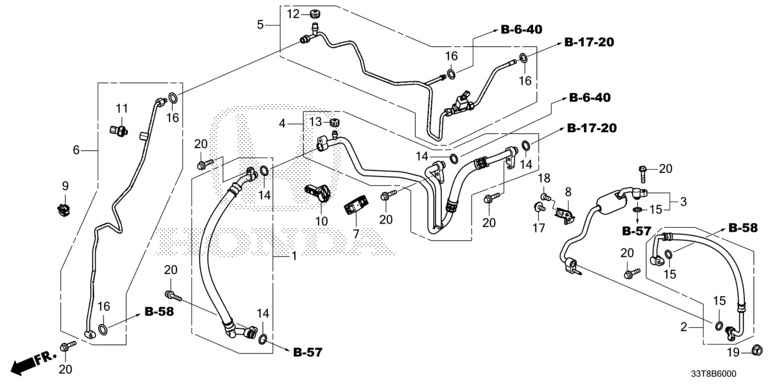

| Ref No. | Parts No. | Parts Name | Unit Qty |
|---|---|---|---|
| 1 | 80311-31Y-H01 | HOSE COMP., SUCTION | 001 |
| 2 | 80315-33T-J01 | HOSE COMP., DISCHARGE | 001 |
| 3 | 80317-33T-J01 | PIPE ASSY., DISCHARGE | 001 |
| 4 | 80326-33T-T01 | PIPE COMP., AIR CONDITIONER | 001 |
| 5 | 80327-33T-T01 | PIPE COMP., AIR CONDITIONER | 001 |
| 6 | 80341-33T-H01 | PIPE COMP., RECEIVER | 001 |
| 7 | 80361-T9M-P01 | CLAMP A, AIR CONDITIONER PIPE (16MM) | 001 |
| 8 | 80362-31Y-H00 | CLAMP, DISCHARGE PIPE | 001 |
| 9 | 80363-T5A-003 | CLIP, RECEIVER PIPE | 001 |
| 10 | 80365-T5A-003 | CLAMP B, AIR CONDITIONER PIPE | 001 |
| 11 | 80450-T2F-A01 | SENSOR ASSY., PRESSURE (SENSATA) | 001 |
| 12 | 80865-T4N-H01 | CAP, VALVE (H) | 001 |
| 13 | 80866-T4N-H01 | CAP, VALVE (L) | 001 |
| 14 | 80871-ST7-000 | O-RING (5/8″) | 004 |
| 15 | 80872-ST7-000 | O-RING (1/2″) | 003 |
| 16 | 80873-ST7-000 | O-RING, 8MM | 004 |
| 17 | 93405-06016-08 | BOLT-WASHER, 6X16 | 001 |
| 18 | 93500-04008-04 | SCREW, PAN, 4X8 | 001 |
| 19 | 94050-06080 | NUT, FLANGE, 6MM | 001 |
| 20 | 95701-06025-08 | BOLT, FLANGE, 6X25 | 007 |
