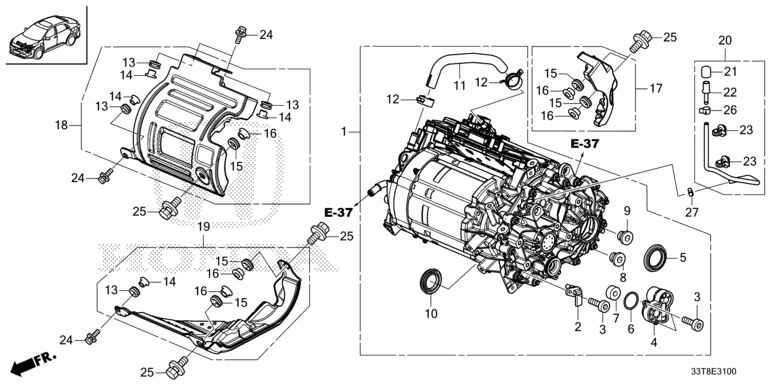

| Ref No. | Parts No. | Parts Name | Unit Qty |
|---|---|---|---|
| 1 | 1A000-6PB-G13 | DRIVE UNIT (REWRITABLE) | 001 |
| 2 | 1A001-6PB-H01 | POSITION SENSOR | 001 |
| 3 | 1A002-6PB-H01 | BOLT, 6MM | 003 |
| 4 | 1A003-6PB-H01 | PARKING LOCK ACTUATOR | 001 |
| 5 | 1A004-6PB-H01 | SEAL, OUTPUT SHAFT (COVER SIDE) | 001 |
| 6 | 1A005-6PB-H01 | O-RING, PARKING LOCK | 001 |
| 7 | 1A006-6PB-H01 | DISK, EXPANDED FOAM | 001 |
| 8 | 1A007-6PB-H01 | PLUG, MAGNETIC (M18X1.5) | 001 |
| 9 | 1A008-6PB-H01 | PLUG (M18X1.5) | 001 |
| 10 | 1A009-6PB-H01 | SEAL, OUTPUT SHAFT (MOTOR SIDE) | 001 |
| 11 | 1A011-6PB-H01 | HOSE (BLACK) | 001 |
| 12 | 1A012-6PB-H01 | CLIP, HOSE | 002 |
| 13 | 1A903-6PB-H01 | RUBBER, INSULATOR MOUNTING | 004 |
| 14 | 1A904-6PB-H00 | COLLAR, MOUNTING | 004 |
| 15 | 1A905-6PB-H01 | RUBBER, INSULATOR MOUNTING | 005 |
| 16 | 1A906-6PB-H00 | COLLAR, MOUNTING | 005 |
| 17 | 1A920-6SM-H01 | INSULATOR ASSY., TRANSMISSION RR. | 001 |
| 18 | 1A930-6SM-H01 | INSULATOR ASSY., MOTOR FR. | 001 |
| 19 | 1A940-6SM-H01 | INSULATOR ASSY., MOTOR UNDER | 001 |
| 20 | 21320-6SM-H00 | TUBE ASSY., BREATHER | 001 |
| 21 | 21396-PX5-000 | CAP, BREATHER | 001 |
| 22 | 91506-5LH-003 | CLIP, BREATHER TUBE | 001 |
| 23 | 91542-SNA-003 | CLIP, HARNESS BAND (DARK BLUE) (164.5MM) | 002 |
| 24 | 93404-06025-05 | BOLT-WASHER, 6X25 | 004 |
| 25 | 93404-10030-05 | BOLT-WASHER, 10X30 | 005 |
| 26 | 95002-41050-08 | CLAMP, TUBE (D10.5) | 001 |
| 27 | 95002-41200-08 | CLAMP, TUBE (D12) | 001 |
