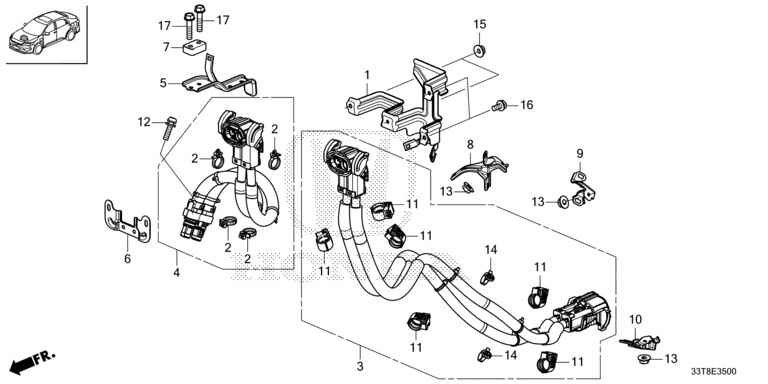

| Ref No. | Parts No. | Parts Name | Unit Qty |
|---|---|---|---|
| 1 | 1C650-6PA-G10 | GUARD COMP., CHARGER | 001 |
| 2 | 1F041-51E-901 | CLIP, BAND HARNESS (NATURAL) | 004 |
| 3 | 1F110-6SL-H01 | IPU DC HIGH VOLTAGE CABLE ASSY | 001 |
| 4 | 1F140-6PA-H01 | CHARGER DC HIGH VOLTAGE CABLE ASSY | 001 |
| 5 | 1F142-6SL-H00 | BRACKET COMP. B, CHARGER DC CABLE | 001 |
| 6 | 1F143-6PA-H00 | BRACKET C, CHARGER DC CABLE | 001 |
| 7 | 1F145-6PA-H00 | MASS, CHARGER DC CABLE | 001 |
| 8 | 1F162-6SL-H00 | BRACKET COMP. B, IPU DC CABLE | 001 |
| 9 | 1F163-6SL-H00 | BRACKET C, IPU DC CABLE | 001 |
| 10 | 1F164-6SL-H00 | BRACKET D, IPU DC CABLE | 001 |
| 11 | 1F740-5WM-J01 | HOLDER, CORRUGATED (19) (ORANGE) | 006 |
| 12 | 90018-6PA-H00 | BOLT-WASHER, TORX, 6X25 | 002 |
| 13 | 90301-SV7-000 | NUT, PAINT CUTTING, 6MM | 003 |
| 14 | 91540-3A0-003 | CLIP, HARNESS BAND (DARK GRAY) (175.2MM) | 002 |
| 15 | 94071-06080 | NUT-WASHER, 6MM | 002 |
| 16 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 002 |
| 17 | 95701-06030-08 | BOLT, FLANGE, 6X30 | 002 |
