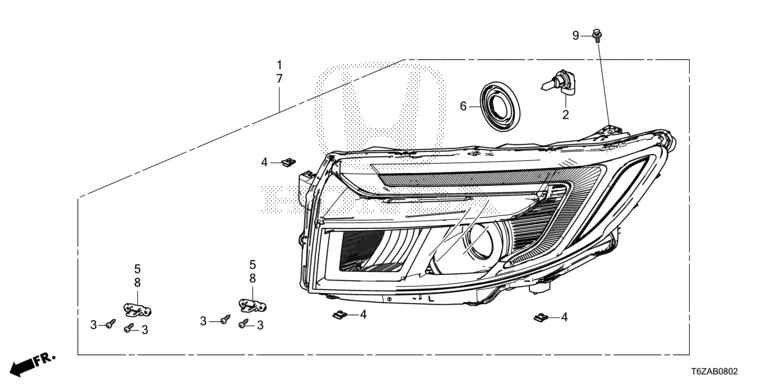

Headlight
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 33100-T6Z-A11 | HEADLIGHT ASSY., R. | 001 |
| 2 | 33103-S3V-A01 | BULB, HEADLIGHT (HB3) (12V 60W) (SYLVANIA) | 002 |
| 3 | 33103-TG7-A01 | SCREW, TAPPING, 4X14 | 008 |
| 4 | 33104-ST7-000 | NUT, SPECIAL | 006 |
| 5 | 33105-T6Z-A01 | CLIP, R. | 002 |
| 6 | 33126-S3V-A01 | COVER, RUBBER | 002 |
| 7 | 33150-T6Z-A11 | HEADLIGHT ASSY., L. | 001 |
| 8 | 33155-T6Z-A01 | CLIP, L. | 002 |
| 9 | 93405-06020-04 | BOLT-WASHER, 6X20 | 008 |
