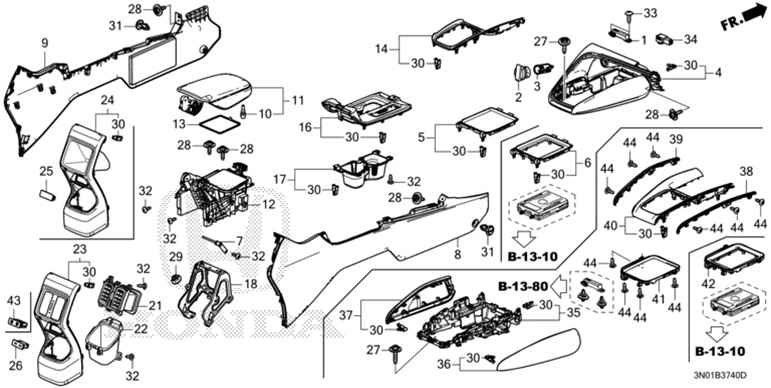

Console
| Ref No | Part Number | Part Description |
| 7 | 83404-3M0-J01 | Hinge, Torque |
| 8 | 83406-3M0-J01ZA | Console upper stone side) *NH900L* (NH900L neutral black |
| 9 | 83406-3M0-J11ZA | Console lower stone side) *NH900L* (NH900L neutral black |
| 10 | 83406-TX6-A01 | Stopper, Console Armrest |
| 11 | 83407-3M0-J31ZA | Console Armrest, TAG) *NH900L* (NH900L Neutral Black |
| 12 | 83411-3M0-J01ZA | Console Box *NH900L* (NH900L Neutral Black |
| 13 | 83412-3M0-J01 | Mat, Console Box |
| 16 | 83431-3M0-J01ZA | Cup Holder Panel *NH900L* (NH900L neutral black |
| 17 | 83432-3M0-J01ZA | Cup Holder *NH900L* (NH900L Neutral Black |
| 18 | 83445-3M0-J00 | Rear Console Bracket |
| 21 | 83452-3M0-J01ZA | Outlet Assembly, Rear *NH900L* (NH900L Neutral Black |
| 22 | 83451-3M0-J01ZA | Pocket, Rear *NH900L* (NH900L neutral black |
| 23 | 83455-3M0-J01ZA | Garnish ASSY., Rear Outlet *NH900L* (NH900L Neutral Black |
| 27 | 90133-TBA-000 | Bolt Washer 5X25 |
| 28 | 90140-SH3-003 | Bolt Washer 5X18 |
| 29 | 90301-SV7-000 | Nut, Paint Coating 6MM |
| 30 | 90666-TDK-003 | Clip, Snap Fastening |
| 31 | 91561-S84-A21ZT | Clip, Rear Panel *NH900L* (NH900L Neutral Black |
| 32 | 93913-24220 | Screw, Tapping (4X12) |
| 35 | 83401-3M0-J41 | Console Pad Front |
| 36 | 83402-3M0-J41ZC | Pad ASSY., Driver *NH585L* (NH585L Monogrey |
| 37 | 83403-3M0-G41ZC | Pad ASSY., Driver LH) *NH585L* (NH585L Monogrey |
| 38 | 83427-3M0-J51 | Molding Assembly, R. Front Console |
| 39 | 83428-3M0-J51 | Molding Assembly, L. Front Console |
| 40 | 83425-3M0-J51ZA | Panel ASSY., Console *NH892L* (NH892L Mirror Black |
| 42 | 83426-3M0-N31ZA | Tray Assembly, Lower WCU Type) *NH900L* (NH900L Neutral Black |
| 43 | 8A350-3A0-A01 | Charger Unit, USB Dual Usage |
| 44 | 93913-24220 | Screw, Tapping (4X12) |
