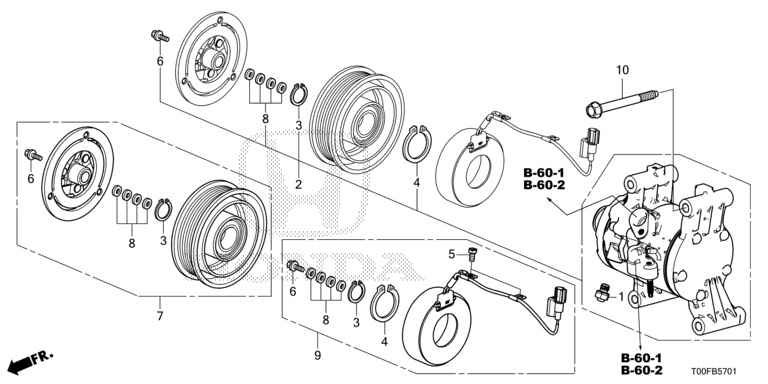

AIR CONDITIONER COMPRESSOR
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 38801-62A-K11 | VALVE SUB ASSY., SAFETY | 001 |
| 2 | 38810-62C-T03 | AC COMPRESSOR | 001 |
| 3 | 38812-6G4-K01 | C-RING, PULLEY | 001 |
| 4 | 38813-6G4-K01 | C-RING, COIL | 001 |
| 5 | 38827-6G4-K01 | SCREW, 5MM | 002 |
| 6 | 38829-6G4-K01 | BOLT, 6X10.9 | 001 |
| 7 | 38900-62A-K01 | CLUTCH SET | 001 |
| 8 | 38912-6G4-K01 | WASHER SET (6MM) | 001 |
| 9 | 38924-62A-K01 | COIL SET | 001 |
| 10 | 90023-PNA-000 | BOLT, FLANGE, 8X80 | 004 |
